Biaxial Shielded Telephone Jack Switch - 6 Conductors
Biaxial Shielded Telephone Jack Switch - 6 Conductors
SKU:TEL-ce45ea
Enhance communication reliability with our Biaxial Shielded Telephone Jack Switch - 6 Conductors. Ideal for ruggedized commercial/military use. Meets DLA standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Biaxial Shielded Telephone Jack Switch - 6 Conductors
$24.99
Quantity: 1
Claim Your Seller Account
Biaxial Shielded Telephone Jack Switch - 6 Conductors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Biaxial Shielded Telephone In-Line Jack brings unparalleled reliability and security to your communication systems. Designed for ruggedized commercial and military applications, this jack features a biaxial shielding design for enhanced signal integrity. With 6 conductors and nickel-plated beryllium copper contacts, it ensures superior conductivity and durability. Pre-tinned solder terminals and robust construction make installation easy and long-lasting. Meeting stringent industry standards, including DLA requirements, this jack guarantees dependable performance in demanding environments.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
6
Specifications Contact Diameter
.285 in
Specifications Contact Material
Nickel Plated Beryllium Copper
Specifications Contact Resistance
⤠.02 O
Specifications Dielectric Withstanding Voltage Rms
⥠500 V
Specifications Insertion Force Maximum
13 lb
Specifications Insulation Resistance
⥠1,000 mO

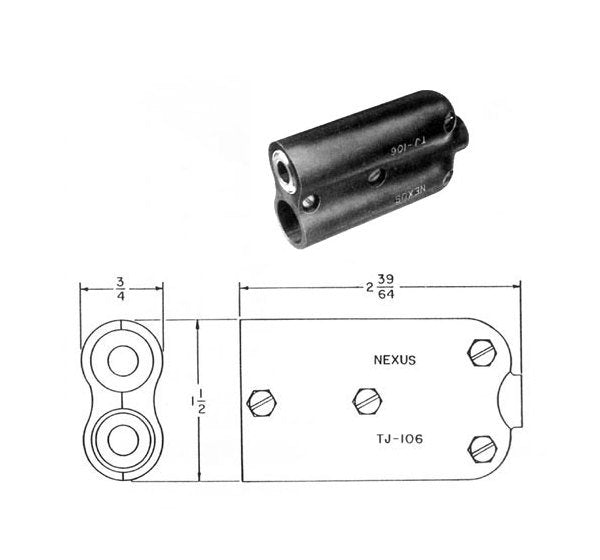

Specifications Overall Height
1.500 in
Specifications Overall Length
2.609 in
Specifications Overall Width
.750 in
Specifications Shell Material
Plastic
Specifications Solder Contact Terminals
Pre-tinned over Nickel Plating
Specifications Withdrawal Force
6 to 10 lb
