Big Joe D40 Series 21.5x45 Electric Power Pallet Truck
Big Joe D40 Series 21.5x45 Electric Power Pallet Truck
SKU:D40-537d9b
Compact, powerful, and versatile electric power pallet truck for lift gate and local delivery.
Regular price
$3,299.99
Regular price
Sale price
$3,299.99
Unit price
per
Initiate Order
Big Joe D40 Series 21.5x45 Electric Power Pallet Truck
$3,299.99
Quantity: 1
Claim Your Seller Account
Big Joe D40 Series 21.5x45 Electric Power Pallet Truck
$3,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

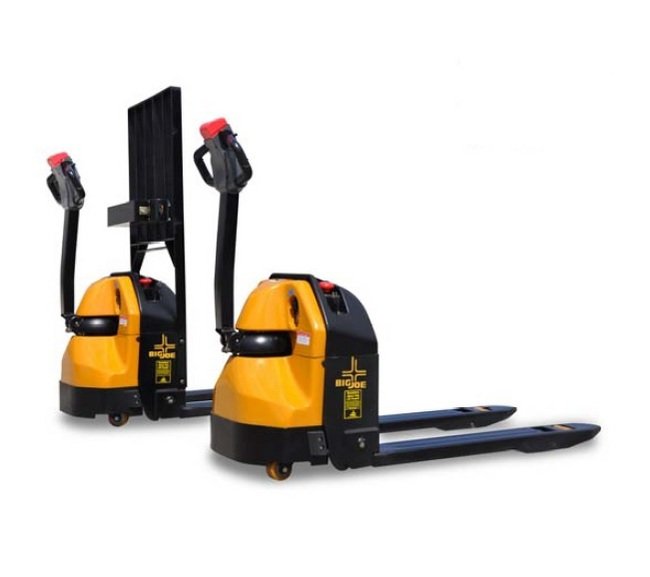

The Big Joe D40 Series Electric Power Pallet Truck is a compact and powerful solution designed for lift gate and local delivery applications. Featuring a 4000 lb capacity, this pallet truck is equipped with a ZAPI control system for precise speed control, ergonomic tiller arm controls, and maintenance-free AGM batteries. The vertically mounted AC drive motor ensures high performance with minimal noise, while the hydraulic system with hard chrome plated rods ensures smooth lifting operation. With water-resistant components and optional equipment like the Load Back Rest and Tool Tray, this pallet truck is a versatile and reliable choice for both consumer and institutional needs.
Product Specifications
Accessibility
Water resistant removal three piece power head cover exposes major components and maintenance free AGM batteries for inspection and maintenance.
Drive Unit
Vertically mounted AC drive motor is direct mounted to gear housing. Oil bathed hypoid bevel gear drive train with tapered roller bearings transfers power to axle.State of the art optimized gear technology supplies advantages such as minimal envelope circle, zero maintenance, low noise level, high efficiency and high performance.Electromagnetic brake is mounted on motor armature shaft multiplying the braking power through the transmission. Brake is applied when control arm is in the vertical or horizontal handle position. System features anti-roll back and neutral braking.
Electrical
Electric braking, quick disconnect EPD power cut off, key switch and battery discharge indicator are standard equipment.
Hydraulics
Lift cylinder has hard chrome plated rods. Pump unit including motor, solenoid, gear pump, and pressure compensated lowering valve are mounted high in the power compartment for ease of service.
Optional Equipment
Rubber Lug Drive Tire48" Tall Load Back Rest60" Tall Load Back RestFork Width - 22"Fork Length - 36"Tool tray with Load Restraint
Technical Specs Actual Fork Length B
45 in
Technical Specs Actual Fork Width A
21.5 in
Technical Specs Brands
Big Joe®
Technical Specs Capacity
4000 lb
Technical Specs Forks Size
22 x 48 in
Technical Specs Gradeability Without Load
10 %
Technical Specs Gradeability With Load
6 %
Technical Specs Inside Fork Width F
9.7 in
Technical Specs Integral Batterycharger
(2) 12-Volt Absorbed Glass Matt (AGM) 85AH maintenance free batteries with 10 AMP 110VAC plug-in automatic charger.
Technical Specs Overall Length E
64 in
Technical Specs Tires
Drive9" x 3" polyurethaneStability Casters3.3" x 1.9" polyurethaneLoad2.9" x 3.5" polyurethane
Technical Specs Travel Speed
24-Volt ZAPI ACO Travel ControllerVariable from 0 mph to 3.6 mph emptyVariable from 0 mph to 3.5 mph loaded
Technical Specs Travel Variable Empty
0 to 3.6 mph
Technical Specs Travel Variable Loaded
0 to 3.5 mph
Technical Specs Truck Model
D40
Technical Specs Turning Radius C
57.5 in
Technical Specs Weight
650 lb
Technical Specs Weight With Battery And Charger
600 lb
Technical Specs Wheelbase D
44.95 in
Tiller Arm Controls
Travel, lift, and lower functions are located in the ergonomic operator handle. All operator controls are accessible without having to lift the hand from the handle.Angle grips are designed to allow easy operation with either hand. Wrap around guard, reversing switch, thumb control, and horn are standard. Low mounted tiller arm offers excellent operator comfort and minimum steering effort. Gas assisted spring tiller handle gently returns to vertical position when released.Crawl speed function with steer handle at 15º back-tilt from vertical allows for ease of use in tight areas.
