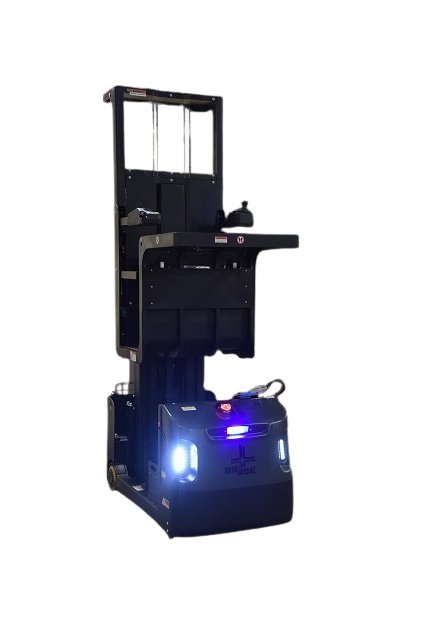

The Big Joe J1HD Super Joey 210" Task Support Vehicle is a heavy-duty solution designed for indoor operation on level surfaces. With a lift height of 210", this vehicle offers exceptional maneuverability and stability, making it ideal for a wide range of institutional applications. Equipped with advanced features like a triple-stage mast, ergonomic controls, regenerative braking, and a 48-volt AC system, this vehicle ensures efficient and safe operations. Meeting stringent industry standards, the J1HD is a reliable choice for demanding work environments.
Product Specifications
Capacity Front Work Platform Capacity
700 lb
Capacity Maximum Capacity
Up to 126" elevation as illustrated for all models with standard size platforms. The maximum combined capacity of the front work platform + operator above 126" is 550lbs.
Capacity Operators Compartment Capacity
300 lb
Capacity Rear Hide Away Tray Capacity
200 lb
Capacity Total Vehicle Capacity Up To 126 Inch In Elevation
1,200 lb
Chassis
Three point chassis design along with 180º drive motor steering arc provides exceptional maneuverability. Powerhead mounted stability casters add additional truck stability and operator confidence at working heights of up to 22'.
Electrical
48-volt AC system manages the vehicle's electronic power steering, acceleration, neutral braking and automatic speed reduction both at height and during tight turns when cornering.AC drive motor provides high torque throughout the entire speed range. The brushless design of AC motor technology drastically reduces maintenance and extends truck run times through efficiency.Lift and lower controls are single speed.Zapi LCD dashboard display includes fault code diagnostics, hour meter, battery discharge indicator, travel speed and drive wheel directional indicator. The J1HD comes with an emergency power disconnect, blue light, forward facing LED headlights, key switch and horn as standard equipment.
Mast
Triple StageHeavy-duty I-beam design provides excellent stability at height. Steel mast channels and side mounted lift cylinders increases platform capacity.
Operator Compartment
Ergonomic fingertip controls for travel, lift and lower functions provide for easy and intuitive operation while traveling at height or ground level.Roomy operator compartment is designed for high productivity and comfort. Large storage compartments are included for paperwork, pick tickets and tools. Retractable compartment guardrails have an audible alarm when raised if the platform is above a modest elevation.
Optional Equipment
Anchor with tether and harnessTow hitch (3,600lb tow capacity)Custom front platform optionsCustom front work basket options12 volt power adapterIndustrial battery and matching chargerLithium battery and matching charger
Regenerative Brakes
Regenerative braking is applied when the operator removes their hand from travel control or when travel speeds are reduced, Electromagnetic parking brake is applied after the truck is stopped.
Speed Lift Speed Loaded
33 fpm
Speed Lift Speed Unloaded
55 fpm
Speed Speed
48-volt infinitely variable ZAPI travel controller with (4) operator selectable travel settings and turtle speed mode.
Speed Standard Travel Speed
0 to 6.5 mph
Standard Features
Electronic power steeringHide away rear work trayForward facing blue lightForward facing LED headlightsPremium anti-fatigue rubber floor mat
Technical Specs Battery Compartment
34 x 11.8 x 26.4 in
Technical Specs Brands
Big Joe®

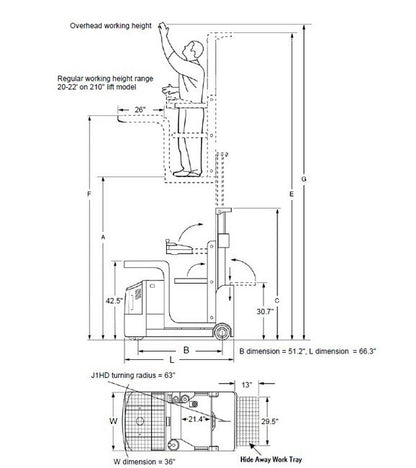

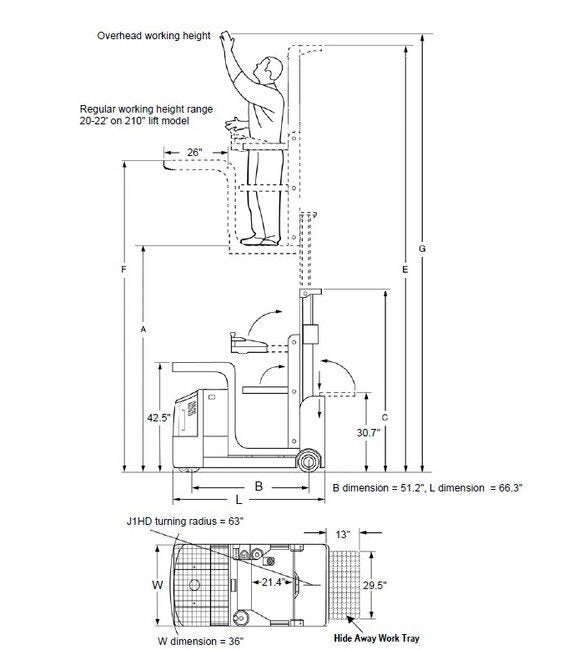

Technical Specs Column Height C
88.6 in
Technical Specs Extended Height E
288.8 in
Technical Specs Front Work Platform Height F
248.8 in
Technical Specs Lift Height A
210 in
Technical Specs Minimum Turn Aisle
Allow for additional clearance for ease of use on taller units.
Technical Specs Operator Controls
Left Hand | Right Hand
Technical Specs Overhead Working Height G
287 in
Technical Specs Weight Chassis Only
3,594 lb
Wheelstires Drive Wheelstires Material
Polyurethane
Wheelstires Drive Wheelstires Size
10.2 x 4.9 in
Wheelstires Number Of Drive Wheelstires
1
Wheelstires Number Of Rear Wheelstires
2
Wheelstires Number Of Stability Caster
2
Wheelstires Rear Wheelstires Material
Polyurethane
Wheelstires Rear Wheelstires Size
8 x 3 in
Wheelstires Stability Caster Material
Polyurethane
Wheelstires Stability Caster Size
3 x 2 in
