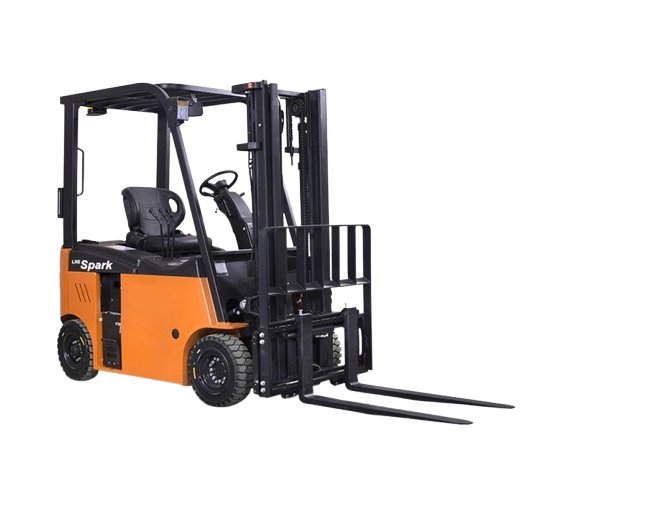

Big Joe LXE Spark 189in Lift Lithium Forklift
Big Joe LXE Spark 189in Lift Lithium Forklift
SKU:LXE-c02890
Revolutionize material handling with the Big Joe LXE Spark Forklift - efficient, powerful, and operator-friendly!
Regular price
$21,599.99
Regular price
Sale price
$21,599.99
Unit price
per
Initiate Order
Big Joe LXE Spark 189in Lift Lithium Forklift
$21,599.99
Quantity: 1
Claim Your Seller Account
Big Joe LXE Spark 189in Lift Lithium Forklift
$21,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Big Joe LXE Spark 189 Inch Lift Height Lithium Forklift is a game-changer in material handling. With a swift charge, clean power, and the ability to run for 4-4.5 hours, this forklift offers unparalleled efficiency. Boasting a 3700 lb capacity along with a three-stage mast reaching up to 189 inches, it ensures top-tier performance. Equipped with a UL-recognized 48v 360AH Li-Ion battery, ergonomic controls for ease of operation, and excellent visibility, this forklift enhances productivity while prioritizing operator comfort and safety. With features like power steering, weather-resistant components, and regenerative braking, it ensures optimal performance and reliability in various environments.
Product Specifications
Battery
UL recognized 48v 360AH Li-Ion battery Capable of fast charging, without gassing or need for maintenance or eye wash stations.Connector: Rema DIN 320PERFORMANCE
Capacity
3700 lbs. at 24" load center to 130" with integral sideshift as standard equipment.Triple stage wide view masts deliver maximum lift heights of up to 197".
Drive Unit And Brakes
AC Drive motor delivers smooth torque and speed performance matched to vehicle needs in real time for peak efficiency and performance.Regenerative neutral braking extends duty-cycle. Vehicle's electromagnetic brakes and lever actuated parking brake ensure effective stopping power during operation and when on rated grades.
Electrical
48v AC controller technology delivers high efficiency and performance while significantly reducing maintenance cost and extending vehicle service life.Vehicle features weather resistant components and construction to facilitate limited use in outdoor environments.Battery management system monitors lithium battery performance during operation and charging to help extend battery service life up far longer than traditional lead acid industrial batteries.
Frame And Mast
Heavy-duty steel chassis features long wheel-base, wide tires and low center of gravity for stable operation. Wide view mast includes an integral side-shift and load back rest (LBR). High seating position gives the operator an excellent view for efficient load handling at ground level and elevation.
Hydraulics
Powerful AC hydraulic lift motor provides smooth high torque lifting and lowering. Hydraulic lift and drive components are sealed against dirt and water protecting them from contamination.
Operator Compartment
Operators compartment is exceptionally spacious due to purpose-built design for an integrated lithium battery. Ergonomic controls are provided for lift, lower, tilt, and sideshift which are within easy reach of the operator. Visibility is excellent through the wide view mast. Power steering with assist knob, adjustable steering column & adjustable suspension seat ensures comfortable working position and reduced fatigue during operation.Large mirror and overhead guard mounted hand rail aids operator when driving the in the reverse direction of travel.LCD programmable display communicates travel speed, battery discharge information, hour meter, and fault codes.
Optional Equipment
4th hydraulic valve, control and hosingHang-on sideshift in lieu of integralSideshifting fork positionerIP54 packageTelematics packageFully enclosed cab
Performance Lift Empty
0 to 83 fpm
Performance Lift Loaded
0 to 55 fpm
Performance Lowering Empty
0 to 85 fpm
Performance Lowering Loaded
0 to 88 fpm
Performance Travel Empty
8.75 mph
Performance Travel Loaded
8.50 mph
Serviceability
On-board programmable LCD display allows for troubleshooting and system adjustments without need of tools. Units come pre-wired for optional telematics system that includes cloud based maintenance monitoring, GPS tracking and related data services.
Standard Equipment
Headlights and brake LightsTurn signals & back up alarmSolid pneumatic tiresIntegral sideshiftUSB accessory charging portReverse travel grab handle with horn480v three phase or 120v charger
Technical Specs Brands
Big Joe®
Technical Specs Capacity At 24 Inch In Load Center To 130 Inch I
3700 lb
Technical Specs Capacity At 24 Inch In Load Center To 189197 Inc
2500 lb

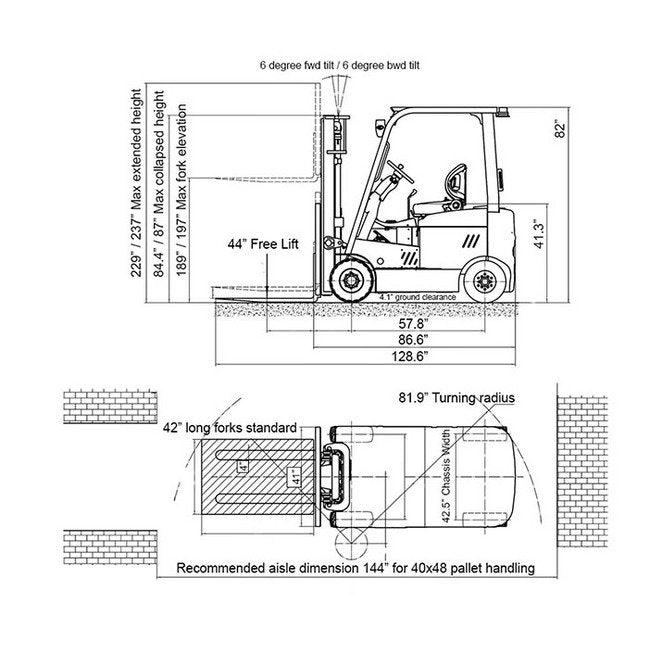

Technical Specs Column Height B
84.4 in
Technical Specs Extended Height Without Backrest D
208 in
Technical Specs Extended Height With Backrest D
229 in
Technical Specs Free Lift Without Backrest C
65.0 in
Technical Specs Free Lift With Backrest C
44.0 in
Technical Specs Front Tire Size
17.75 x 8 in
Technical Specs Lift Height A
189 in
Technical Specs Mast
Three Stage
Technical Specs Rear Tire Size
17.25 x 4.5 in
Technical Specs Tire Type
Solid Pneumatic
Technical Specs Weight
7370 lb
