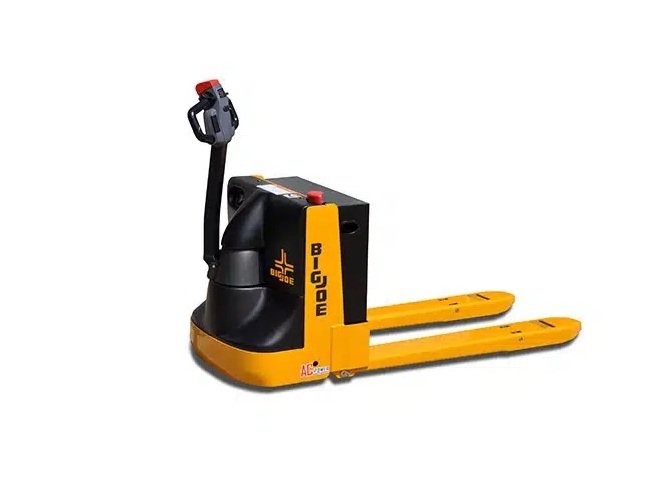

The Big Joe WPT45 Series Medium-Duty Electric Power Pallet Truck is a robust and efficient solution for material handling in busy warehouse environments, featuring a durable construction and advanced ergonomic controls. With a 4500 lb capacity and precise handling capabilities, this electric pallet truck is ideal for operations with crowded loading docks, congested aisles, and tight work cells. Operators will appreciate the ease of maneuvering provided by the low mounted tiller arm controls, while the ZAPI AC inverter and high-performance drive unit ensure consistent travel speeds and reliable operation. Additionally, the fork assembly's design offers enhanced accessibility and maintenance convenience.
Product Specifications
Accessibility
Removal of two piece power head cover exposes major components for inspection and maintenance.
Drive Unit
Vertically mounted drive motor is direct mounted to gear housing. Oil bathed ZF GK10 hypoid bevel gear drive train with tapered roller bearings transfers power to axle. State of the art optimized gear technology supplies advantages such as minimal envelope circle, zero maintenance, low noise level, high efficiency and high performance.Regenerative electromagnetic brake is mounted on motor armature shaft multiplying the braking power through the ZF GK10 transmission. Brake is applied when control arm is in the vertical or horizontal handle position. System features anti-roll back and neutral braking.
Electrical
24-Volt ZAPI AC O inverter, travel control with matching drive motor provide high performance throughout the entire speed range. Travel speed remains constant relative to throttle position regardless of load - neutral braking. Separately fused power control circuits, quick disconnect EPD power cut off, hour meter / battery discharge indicator combination gauge and lift lock-out complete the system.Power configurations and diagnostic features are displayed with a ZAPI handheld console.
Fork Assembly
Boxed rail fork construction with pallet entry slide allows easy pallet entry by lifting the fork up and over bottom board.Eight easily accessed grease zerks for ease of maintenance.
Hydraulics
Lift cylinder has hard chrome plated rods. Pump unit including motor, solenoid, gear pump, and pressure compensated lowering valve are mounted high in the power compartment for ease of service.
Note

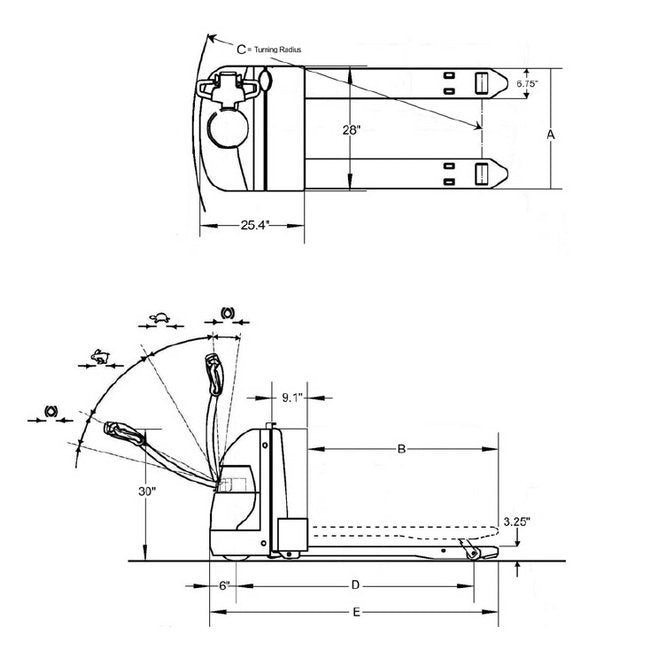

Dimensions listed above are based on 9.1" battery compartment.
Optional Equipment
Cold ConditioningRubber Lug Drive TireFork Entry RollersLoad Back Rest - 48"Stability CastersFork Widths - 18" or 21"Fork Lengths - 36" or 60"8.1" Battery CompartmentModel - WPT45S only available with 27 x 48 fork dimension.
Technical Specs Actual Fork Length B
57.5 in
Technical Specs Actual Fork Width A
27 in
Technical Specs Battery
Compartment: 26.37" x 9.1" x open. Anderson 175 Gray - A-11 Minimum battery weight 175 lbs.
Technical Specs Brands
Big Joe®
Technical Specs Capacity
4500 lb
Technical Specs Chassis Weight
670 lb
Technical Specs Derate 60 Inch In Long Fork
1500 lb
Technical Specs Extended Fork Height
8.2 in
Technical Specs Forks Size
27 x 60 in
Technical Specs Fork Inside Diameter A
13.5 in
Technical Specs Gradeability Without Load
10 %
Technical Specs Gradeability With Load
6 %
Technical Specs Lowered Fork Height
3.25 in
Technical Specs Maximum Forklift Height
4.95 in
Technical Specs Overall Length E
85.5 in
Technical Specs Speed
Variable 0 mph up to 3.6 mph emptyVariable 0 mph up to 3.5 mph loaded
Technical Specs Tires
Drive9" x 3" polyurethaneLoad3.25" x 4.5" polyurethane
Technical Specs Travel Variable Empty
0 to 3.6 mph
Technical Specs Travel Variable Loaded
0 to 3.5 mph
Technical Specs Truck Model
WPT45
Technical Specs Turning Radius C
80 in
Technical Specs Weight
910 lb
Technical Specs Wheelbase D
85.5 in
Tiller Arm Controls
Travel, lift, and lower functions are located in the ergonomic operator handle. All operator controls are accessible without having to lift the hand from the handle.Angle grips are designed to allow easy operation with either hand. Wrap around guard, reversing switch, thumb control, and horn are standard. Low mounted tiller arm offers excellent operator comfort and minimum steering effort. Gas assisted spring handle gently returns handle to vertical position.Crawl speed function with steer handle at 5º back-tilt from vertical allows for ease of use in tight areas.
