Big Joe WRT60 Series Electric Rider Pallet Truck
Big Joe WRT60 Series Electric Rider Pallet Truck
SKU:WRT-c7635b
Efficient and durable electric rider pallet truck for heavy-duty warehouse applications.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Big Joe WRT60 Series Electric Rider Pallet Truck
$5,899.99
Quantity: 1
Claim Your Seller Account
Big Joe WRT60 Series Electric Rider Pallet Truck
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

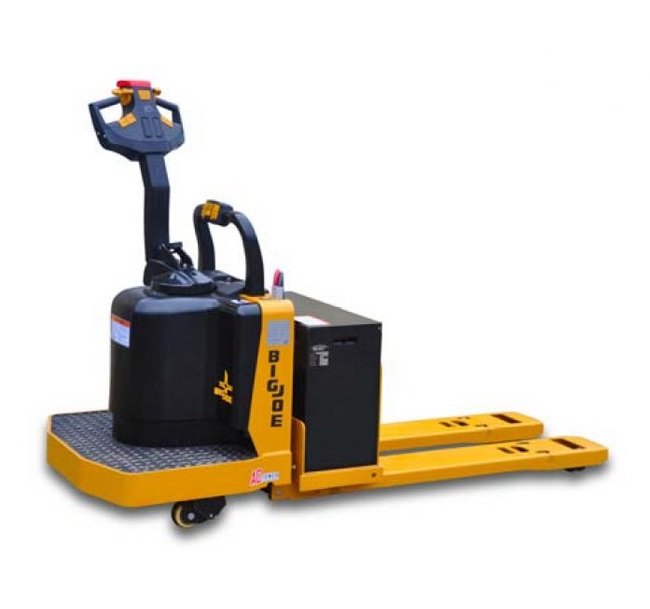

The Big Joe WRT60 Series Electric Rider Pallet Truck is a heavy-duty, end-control solution designed for manufacturing and large warehouse applications. With a 6000 lb capacity and precise control features, including a large operator platform for increased comfort and productivity, this pallet truck ensures efficient material handling operations. Its 24-Volt system, ZAPI traction control, and advanced hydraulics guarantee high performance and durability, making it an ideal choice for demanding industrial environments.
Product Specifications
Accessibility
Heavy-duty composite two piece cover exposes major components for inspection and maintenance.
Caster System
Heavy-duty spring loaded, articulating systems designed to stabilize truck performance and increase operator comfort.
Drive Unit
Vertically mounted drive motor is directly mounted to gear housing. Oil bathed hypoid bevel gear drive train with tapered roller bearings transfers power to axle. State of the art optimized gear technology supplies advantages such as minimal envelope circle, zero maintenance, low noise level, high efficiency and high performance. Regenerative electromagnetic brake is mounted on motor armature shaft multiplying the braking power through the transmission. Brake is applied when control arm is in the vertical or horizontal handle position. System features anti-roll back and neutral braking.
Electrical
Heavy-duty, 24-Volt system for demanding warehouse applications. The programmable ZAPI traction control and matching drive motor provide high performance throughout the entire speed range.Travel speed remains constant relative to throttle position regardless of load. Separately fused power control circuits, quick disconnect EPD power cut off, hour meter / battery discharge indicator combination gauge complete the system. Power configurations and diagnostic features are standard.
Fork Assembly
Pallet entry slide allows easy pallet entry by lifting the fork up and over bottom board. Eight easily accessed grease zerks for ease of maintenance. Tapered extended fork tip design is available on double pallet handling models.
Hydraulics
Heavy-duty pump motor with center mounted lift cylinder. Heavy-duty, pump unit, motor, hydraulic reservoir, solenoid, and gear pump. Integral pressure compensated flow control valve regulates lowering speeds.
Note
Extended-tip Forks.
Operator Area Controls
The WRT60 stand-up end control power pallet truck has a large operator platform which increases operator comfort and productivity. Careful location of ergonomic operator handle feature easy to use controls for travel, lift, lower and horn functions. All operator controls are accessible without having to lift the hand from the handle. Large thumb control lever for forward and reverse travel allows travel as a rider truck or walkie.Microcellular rubber floor mat and angled power head cover are designed to allow easy operation with either hand and improved operator comfort.Smooth urethane high speed grab bar for operator security with one touch high speed button.
Standard Equipment
24-Volt regenerative brakingLarge AC traction motorMicrocellular rubber floor matTwo piece powerhead coverTapered fork tips with entry skid plateProgrammable performance travel / plugging / brakingErgonomic high speed bar

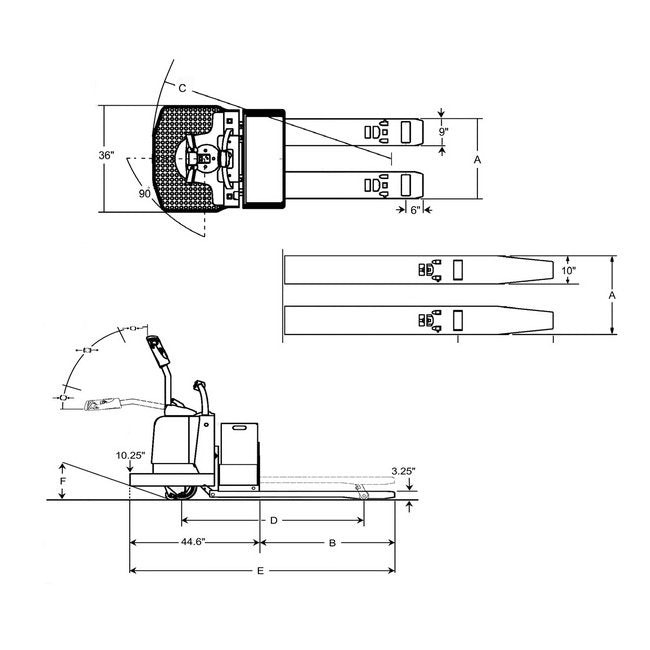

Technical Specs Actual Fork Length B
46.9 in
Technical Specs Actual Fork Width A
22 in
Technical Specs Battery
Compartment: 31.12" x 13.12" x 31.62 Anderson 175 Gray - A-11 Min/Max battery weight 975/1500 lbs.
Technical Specs Brands
Big Joe®
Technical Specs Capacity
6000 lb
Technical Specs Chassis Weight
1528 lb
Technical Specs Extended Fork Height
8.25 in
Technical Specs Forks Size
22 x 48 in
Technical Specs Gradeability Without Load
15 %
Technical Specs Gradeability With Load
8 %
Technical Specs Grade Clearance F
30 %
Technical Specs Lowered Fork Height
3.25 in
Technical Specs Maximum Forklift Height
5.5 in
Technical Specs Overall Length E
91.5 in
Technical Specs Platform Step Height
10.25 in
Technical Specs Speed
Variable 0 mph up to 9.0 mph emptyVariable 0 mph up to 6.5 mph loaded
Technical Specs Tireswheels
Drive10 x 4 in. polyurethaneStability Casters Wheels2 - 3.9 x 2.5 in. polyurethaneLoad2 - 3.25 x 6.5 in. polyurethane
Technical Specs Travel Forks First Variable Empty
0 to 7.1 mph
Technical Specs Travel Forks First Variable Loaded
0 to 5.4 mph
Technical Specs Travel Power Head First Variable Empty
0 to 9.0 mph
Technical Specs Travel Power Head First Variable Loaded
0 to 6.5 mph
Technical Specs Truck Model
WRT60
Technical Specs Turning Radius C
81.2 in
Technical Specs Weight
1254 lb
Technical Specs Wheelbase D
67.8 in
