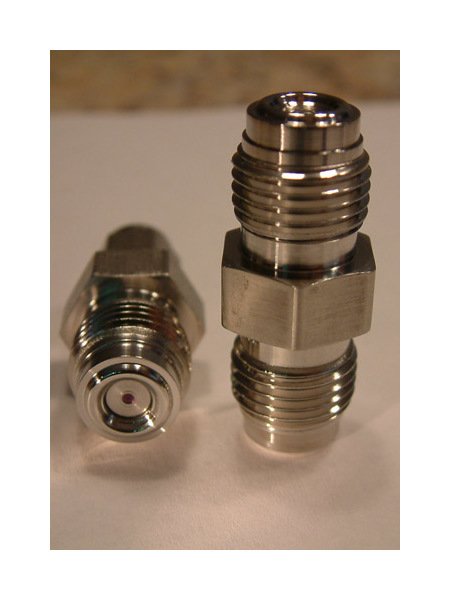

Bird Precision RB82046 Series Stainless Steel Orifice Union
Bird Precision RB82046 Series Stainless Steel Orifice Union
SKU:ORI-b745ee
High-quality stainless steel orifice union for precise low-flow applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Bird Precision RB82046 Series Stainless Steel Orifice Union
$39.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82046 Series Stainless Steel Orifice Union
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bird Precision RB82046 Series Stainless Steel Orifice Union is a high-quality double male union for face seal applications, designed for elevated pressure scenarios. Featuring stainless steel construction with a sharp edge ruby straight-hole orifice style, this union offers precision and repeatability. With orifice sizes ranging from 0.0004" to 0.081", it provides options for varying flow requirements. Laser drilled and wire lapped for roundness and sharp edges, this union ensures accuracy and reliability in low-flow applications. Ideal for both consumer and institutional buyers seeking excellence in orifice fittings.
Product Specifications
Additional Information Additional Information
This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/4 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0270 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Union
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82046
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
