Bird Precision RB82046 Series Stainless Steel Orifice Union
Bird Precision RB82046 Series Stainless Steel Orifice Union
SKU:ORI-2e76ab
Premium Stainless Steel Orifice Union for high-pressure applications, precise flow control, and exceptional accuracy.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Bird Precision RB82046 Series Stainless Steel Orifice Union
$49.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82046 Series Stainless Steel Orifice Union
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

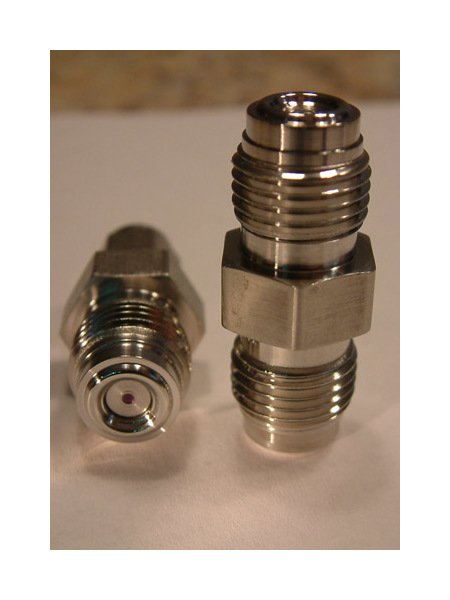

The Bird Precision RB82046 Series Stainless Steel Orifice Union is a premium double male face seal fitting designed for elevated pressure applications. Featuring an Orifice Inner Diameter (I.D.) of 0.0310 inches and an Outer Diameter (O.D.) of 0.060 inches, this union ensures precision and repeatability. The Sharp Edge Ruby Straight-Hole orifice style, laser-drilled and wire lapped for roundness and sharp edges, offers low flow with exceptional accuracy. With orifice sizes ranging from 7.5 microns to 0.081 inches, this union guarantees high performance and reliability for industrial applications.
Product Specifications
Additional Information Additional Information
This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/4 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0310 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Union
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82046
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
