Bird Precision RB82046 Series Stainless Steel Orifice Union
Bird Precision RB82046 Series Stainless Steel Orifice Union
SKU:ORI-2b58f8
Premium stainless steel orifice union with precise 0.024" I.D. and 0.060" O.D., ideal for high-pressure applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Bird Precision RB82046 Series Stainless Steel Orifice Union
$59.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82046 Series Stainless Steel Orifice Union
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

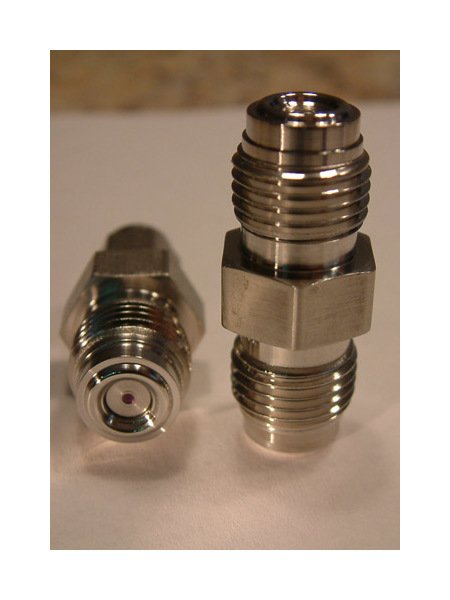

The Bird Precision RB82046 Series Stainless Steel Orifice Union is a high-quality double male union fitting designed for face seal applications, ideal for use in elevated pressure environments. Featuring an Orifice Inner Diameter (I.D.) of 0.0240 inches and an Orifice Outer Diameter (O.D.) of 0.060 inches, this union ensures precision and reliability. The Sharp Edge Ruby Straight-Hole orifice style, laser-drilled and wire-lapped for superior roundness and sharp edges, offers unmatched accuracy and repeatability. With orifice sizes ranging from 0.0004" to 0.081", this union is a perfect choice for applications demanding low flow rates and micron-level precision.
Product Specifications
Additional Information Additional Information
This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/4 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0240 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Union
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82046
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
