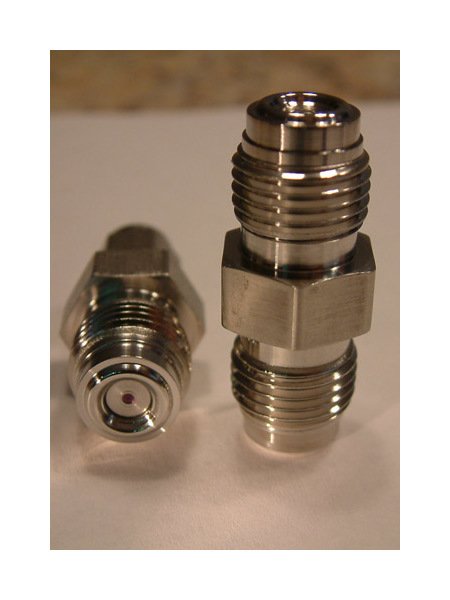

Bird Precision RB82046 Stainless Steel Orifice Union
Bird Precision RB82046 Stainless Steel Orifice Union
SKU:ORI-0a55ce
Precision-engineered stainless steel orifice union for high-pressure face seal applications. Offers accurate flow control with a sharp edge Ruby design.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Bird Precision RB82046 Stainless Steel Orifice Union
$45.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82046 Stainless Steel Orifice Union
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bird Precision RB82046 Series Stainless Steel Orifice Union is a precision-engineered double male fitting designed for face seal applications in high-pressure environments. This union is crafted from high-quality stainless steel, ensuring durability and corrosion resistance. The orifice features a Sharp Edge Ruby Straight-Hole design, precision laser-drilled and wire lapped for exceptional roundness, surface finish, and sharp edges. With orifice sizes ranging from 0.0004" to 0.081", this union offers versatile flow control options for various applications that demand low flow, accuracy, and repeatability. The RB82046 Series is ideal for applications requiring stringent performance standards and reliable operation under elevated pressures.
Product Specifications
Additional Information Additional Information
This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/4 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0320 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Union
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82046
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
