Bird Precision RB82046 Stainless Steel Orifice Union
Bird Precision RB82046 Stainless Steel Orifice Union
SKU:ORI-cf4c26
Premium Stainless Steel Orifice Union for precise low-flow systems. Sharp Edge Ruby Straight-Hole design for accuracy and repeatability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Bird Precision RB82046 Stainless Steel Orifice Union
$49.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82046 Stainless Steel Orifice Union
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

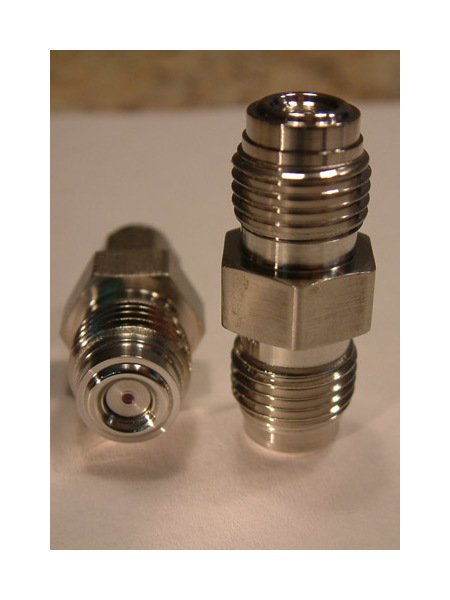

The Bird Precision RB82046 Series 0.0290" Inner Diameter and 0.060" Outer Diameter Stainless Steel Orifice Union is designed for face seal applications in various pressure ranges. This union features a Sharp Edge Ruby Straight-Hole orifice, ensuring accuracy and repeatability for low flow systems. Laser-drilled and wire-lapped for precision, this union offers micron-level sizing options, making it a reliable choice for demanding applications.
Product Specifications
Additional Information Additional Information
This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/4 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0290 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Union
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82046
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
