Bird Precision RB82046 Stainless Steel Orifice Union
Bird Precision RB82046 Stainless Steel Orifice Union
SKU:ORI-4b72fa
Precision stainless steel orifice union for accurate and repeatable flow control in high-pressure applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Bird Precision RB82046 Stainless Steel Orifice Union
$39.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82046 Stainless Steel Orifice Union
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

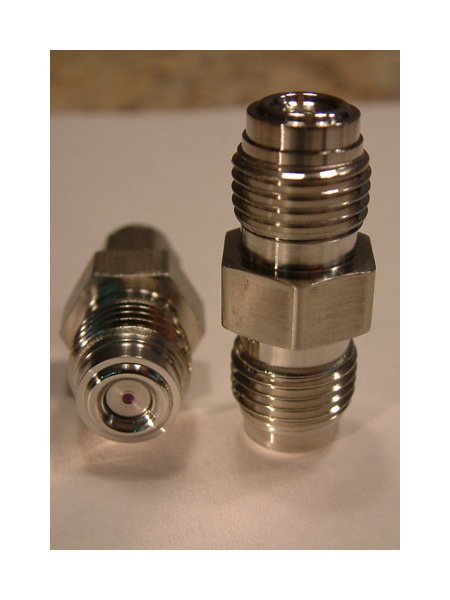

The Bird Precision RB82046 Series Stainless Steel Orifice Union is a precision-engineered fitting designed for face seal applications in elevated pressure environments. Featuring an orifice inner diameter of 0.0205 in and outer diameter of 0.060 in, this union ensures optimal flow control. The sharp edge ruby straight-hole orifice style, laser-drilled and wire lapped for roundness and sharp edges, guarantees low flow rates with high accuracy and repeatability. With orifice sizes ranging from 7.5 to 205 microns, this orifice union is ideal for applications requiring precision and reliability.
Product Specifications
Additional Information Additional Information
This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/4 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0205 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Union
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82046
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
