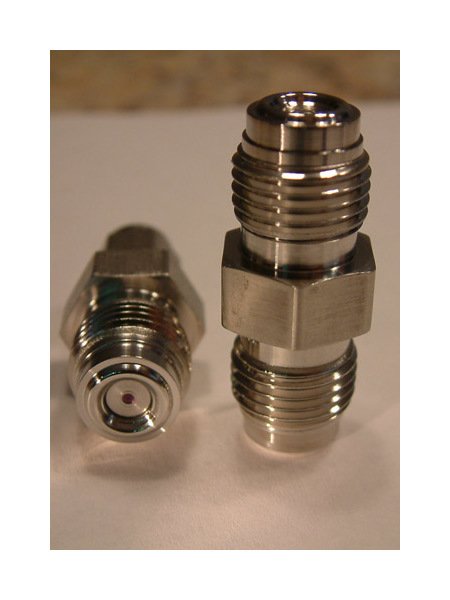

Bird Precision RB82046 Stainless Steel Orifice Union
Bird Precision RB82046 Stainless Steel Orifice Union
SKU:ORI-760f42
Precision stainless steel orifice union with 0.034" I.D. and 0.060" O.D. for superior flow control. Ideal for elevated pressure applications. Laser-drilled Sharp Edge Ruby Straight-Hole orifice ensures accuracy and repeatability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Bird Precision RB82046 Stainless Steel Orifice Union
$49.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82046 Stainless Steel Orifice Union
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bird Precision RB82046 Series Stainless Steel Orifice Union is a premium double male fitting designed for face seal applications in elevated pressure systems. With precise orifice dimensions of 0.0340" Inner Diameter and 0.060" Outer Diameter, this union ensures optimal flow control and containment. The orifice features a Sharp Edge Ruby Straight-Hole design, laser drilled and wire lapped for superior roundness, surface finish, and sharp edges. Ideal for low flow applications requiring high accuracy and repeatability, this union offers a micron series starting at 7.5 microns, guaranteeing reliable performance in various pressure ranges. Choose Bird Precision for quality, precision, and dependability in your fluid handling systems.
Product Specifications
Additional Information Additional Information
This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/4 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0340 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Union
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82046
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
