Bird Precision RB82046 Stainless Steel Orifice Union
Bird Precision RB82046 Stainless Steel Orifice Union
SKU:ORI-e5704b
Premium stainless steel orifice union for precise, high-pressure applications. Versatile orifice sizes from 0.0004" to 0.081". Ideal for low flow accuracy and repeatability.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Bird Precision RB82046 Stainless Steel Orifice Union
$34.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82046 Stainless Steel Orifice Union
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

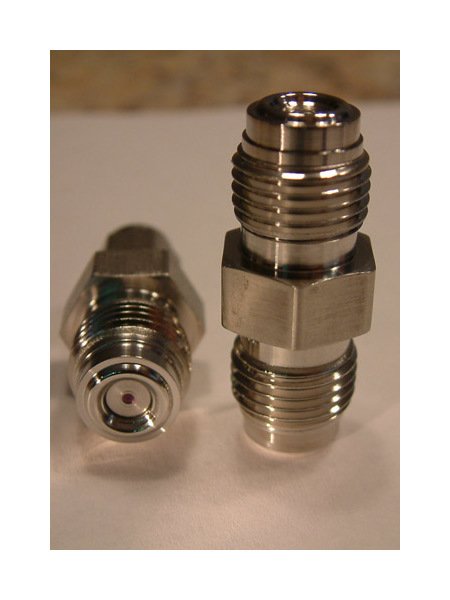

The Bird Precision RB82046 Series Stainless Steel Orifice Union is a high-quality fitting designed for face seal applications with superior precision. This double-male union ensures a secure fit under elevated pressures, offering reliable performance in demanding environments. With orifice sizes ranging from 0.0004" to 0.081", this union provides versatility for various flow requirements. The sharp edge ruby straight-hole orifice design, laser-drilled and wire lapped for roundness and sharp edges, guarantees low flow, accuracy, and repeatability. This series is ideal for applications demanding precision and exceptional micron-level performance.
Product Specifications
Additional Information Additional Information
This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/4 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0250 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Union
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82046
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
