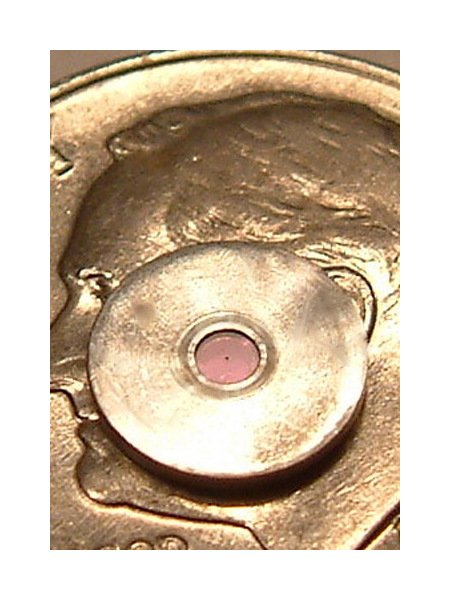

Bird Precision RB82087 Series Stainless Steel Gland/Gasket Connector Orifice

Name: Bird Precision RB82087 Series Stainless Steel Gland/Gasket Connector Orifice
Brand: Bird Precision
SKU: ORI-362109
Price: 24.99 USD
Availability: OutOfStock

SKU:ORI-362109

Precision-engineered RB82087 Series Stainless Steel Gland/Gasket Connector Orifice for stainless tube applications. Laser drilled for accuracy and repeatability.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bird Precision RB82087 Series Stainless Steel Gland/Gasket Connector Orifice is meticulously engineered for impeccable face seal connections in stainless tube applications. With an inner diameter of 0.0230 inches and a diameter of 0.260 inches, these orifices ensure a reliable seal against both faces of the disc. Laser drilled and wire lapped, the Sharp Edge Ruby straight-hole design guarantees roundness, precision, and repeatability, making it ideal for low flow applications requiring accuracy. Designed for 1/8 VCR sizes, this series offers exceptional micron levels starting at 7.5 microns.

Product Specifications

Additional Information Additional Information

For 1/8 VCR, stainless tube applications the standard material is stainless.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.

Specifications Diameter

0.260 in

Specifications Material

Stainless Steel

Specifications Orifice Inner Diameter Id

0.0230 in

Specifications Orifice Outer Diameter Od

0.060 in

Specifications Orifice Style

Sharp Edge Ruby Straight-Hole

Specifications Product Style

Gland/Gasket

Specifications Product Type

Orifice Connectors Fittings

Specifications Series

RB82087

Specifications Suggested Pressures

0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)

Specifications Vacuum Coupling Radiation Vcr Size

1/8
