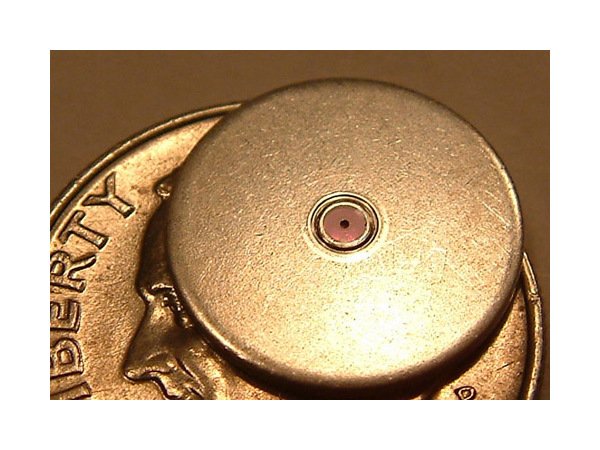

Bird Precision RB82502 Series Stainless Steel Gland/Gasket Orifice Connector
Bird Precision RB82502 Series Stainless Steel Gland/Gasket Orifice Connector
SKU:ORI-0000ad
Precision stainless steel orifice connector with sharp ruby edge for high-pressure stainless tube applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Bird Precision RB82502 Series Stainless Steel Gland/Gasket Orifice Connector
$29.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82502 Series Stainless Steel Gland/Gasket Orifice Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bird Precision RB82502 Series Stainless Steel Gland/Gasket Connector Orifice provides a precise and reliable face seal connection for stainless tube applications. With a 0.0190" Inner Diameter and a 0.475" Diameter, this orifice features a sharp edge ruby straight-hole design for enhanced accuracy and repeatability. Laser-drilled and wire-lapped for roundness and sharp edges, it offers low-flow capabilities and complete micron series starting at 7.5 microns. The silver-plated gasket resists galling, guaranteeing durability and performance. Customizable for specific application needs, this orifice connector meets the demands of high-pressure systems up to 5000 psi.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
This gasket comes with a silver plate which helps resist galling. This gasket comes with our sharp edge ruby series in sizes from 0.0004" thru 0.035". This item can be customized for your unique application needs.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
0.475 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0190 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Gland/Gasket
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82502
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
Specifications Vacuum Coupling Radiation Vcr Size
1/4
