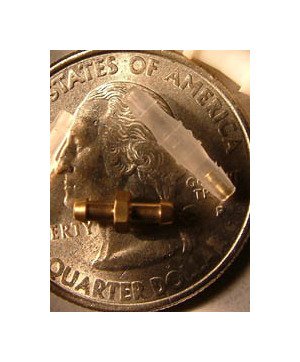

Bird Precision RB82516 Series Plastic Inline Connector Fitting
Bird Precision RB82516 Series Plastic Inline Connector Fitting
SKU:ORI-7ea855
Premium PVDF inline connector with sharp edge ruby orifice for precise control in flexible tubing systems.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Bird Precision RB82516 Series Plastic Inline Connector Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82516 Series Plastic Inline Connector Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bird Precision RB82516 Series Plastic Inline Connector Fitting is designed for precise control in flexible tubing systems. Made of PVDF, this fitting features a sharp edge ruby orifice for low flow, accuracy, and repeatability. With orifice inner diameter of 0.0130 inches and outer diameter of 0.030 inches, it caters to various pressure ranges from low to high. Easy to install and compatible with 1/16" ID tubing, this connector ensures reliable performance and durability.
Product Specifications
Additional Information Additional Information
This connector comes with a unique sharp edge ruby orifice series in sizes from 0.0020" thru 0.0130".This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability.
Specifications Diameter
0.062 in
Specifications Inside Tubing Diameter
1/16 in
Specifications Material
Plastic
Specifications Orifice Inner Diameter Id
0.0130 in
Specifications Orifice Outer Diameter Od
0.030 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Inline Connector for Flexible Tube to Tube
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82516
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
