Bird Precision RB82516 Series Plastic Inline Connector Fitting for Flexible Tube Systems
Bird Precision RB82516 Series Plastic Inline Connector Fitting for Flexible Tube Systems
SKU:ORI-deede4
Enhance fluid system precision with Bird Precision RB82516 Series Plastic Inline Connector Fitting for flexible tubing.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Bird Precision RB82516 Series Plastic Inline Connector Fitting for Flexible Tube Systems
$29.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82516 Series Plastic Inline Connector Fitting for Flexible Tube Systems
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

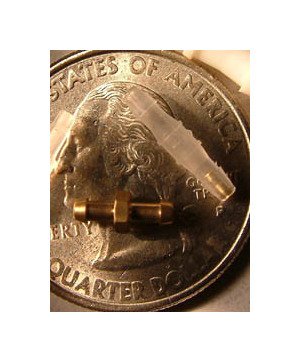

Upgrade your flexible tube system with the Bird Precision RB82516 Series Plastic Inline Connector Fitting. Constructed from high-quality PVDF material, this fitting features an orifice with an inner diameter of 0.0080" and outer diameter of 0.030", ensuring precise flow control and accuracy. The unique sharp edge ruby orifice series, laser-drilled and wire-lapped for optimal roundness and sharp edges, offers low flow, accuracy, and repeatability. Whether for low, medium, or high pressures, this inline connector provides a reliable solution for fluid systems in various industries.
Product Specifications
Additional Information Additional Information
This connector comes with a unique sharp edge ruby orifice series in sizes from 0.0020" thru 0.0130".This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability.
Specifications Diameter
0.062 in
Specifications Inside Tubing Diameter
1/16 in
Specifications Material
Plastic
Specifications Orifice Inner Diameter Id
0.0080 in
Specifications Orifice Outer Diameter Od
0.030 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Inline Connector for Flexible Tube to Tube
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82516
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
