Bird Precision RB82715 Series Plastic Inline Connector Fitting
Bird Precision RB82715 Series Plastic Inline Connector Fitting
SKU:ORI-29aacb
High-quality nylon inline connector fitting for precise orifice integration in flexible tube systems
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Bird Precision RB82715 Series Plastic Inline Connector Fitting
$25.99
Quantity: 1
Claim Your Seller Account
Bird Precision RB82715 Series Plastic Inline Connector Fitting
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

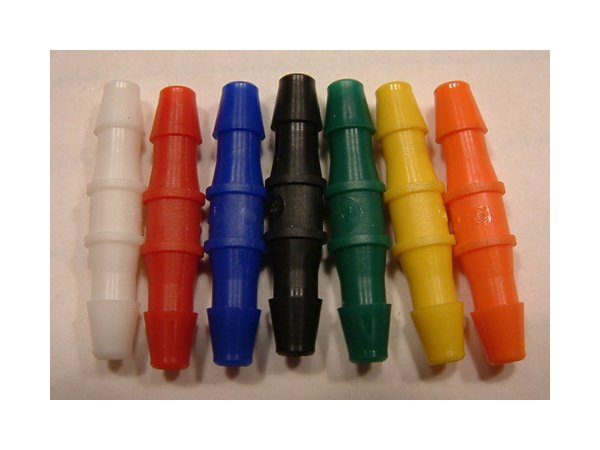

The Bird Precision RB82715 Series Plastic Inline Connector Fitting is a versatile solution for adding an orifice and/or filter in any flexible tube system. Crafted from high-quality nylon, this fitting features an Orifice Inner Diameter (I.D.) of 0.0165 inches and an Orifice Outer Diameter (O.D.) of 0.060 inches, making it ideal for 1/8 inch flexible tubing. With suggested pressures ranging from low to high, this connector offers precision and repeatability, especially in applications requiring low flow rates and accuracy. The sharp edge ruby straight-hole orifice design ensures optimal performance, while optional filtration further enhances functionality. Whether for low-pressure or high-pressure systems, the RB82715 Series guarantees reliability and performance excellence.
Product Specifications
Additional Information Additional Information
This connector comes in our sharp edge ruby orifice series in sizes from 0.0004" thru 0.035".Optional filtration is available as well.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/8 in
Specifications Inside Tubing Diameter
1/8 in
Specifications Material
Plastic
Specifications Orifice Inner Diameter Id
0.0165 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Inline Connector for Flexible Tube to Tube
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82715
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
