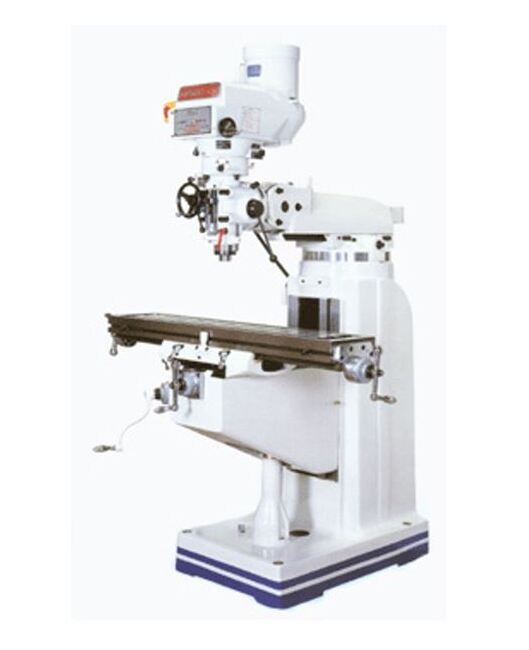

Birmingham 9 x 49 Milling Machine with DRO and Power Feed
Birmingham 9 x 49 Milling Machine with DRO and Power Feed
SKU:MIL-acd424
Precision meets stability in the Birmingham 9 x 49 Milling Machine with DRO and Power Feed. Ideal for versatile work requirements.
Regular price
$8,999.00
Regular price
Sale price
$8,999.00
Unit price
per
Initiate Order
Birmingham 9 x 49 Milling Machine with DRO and Power Feed
$8,999.00
Quantity: 1
Claim Your Seller Account
Birmingham 9 x 49 Milling Machine with DRO and Power Feed
$8,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Birmingham 9 x 49 Milling Machine combines superior Taiwanese engineering with cost-effective Chinese body construction. Featuring a vertically adjustable head, hardened square ways, and a counterbalanced quill for operator precision, this machine offers extreme sensitivity and stability. The power feed, front and rear chip guards, and one-shot lubrication system enhance usability and maintenance. With a spindle taper of R8, 2-3hp motor power, and digital readout included, this machine is designed to meet a wide range of work requirements with maximum rigidity and accuracy.
Product Specifications
Standard Equipment Standard Equipment
Tool box 1 setFront chip guard 1 pc.Rear chip guard 1pc.Draw bar 1 pc.One shot lube
Technical Specs Brands
Birmingham Machinery
Technical Specs Cross Travel Y Axis
13-1/4 in
Technical Specs Included Items
Digital Readout & Power Table Feed
Technical Specs Longitudinal Travel Hand Only
35-1/2 in
Technical Specs Net Weight
2600 lb
Technical Specs Quill Feed Speed Revolutions
0.0508 | 0.1016 | 0.1524
Technical Specs Quill Travel
5 in | 125 mm
Technical Specs Spindle Motor Phase
1 | 3
Technical Specs Spindle Motor Power
2 hp | 3 hp
Technical Specs Spindle Speeds
90 to 5600 rpm
Technical Specs Spindle Taper
R8
Technical Specs Voltage
220 V
