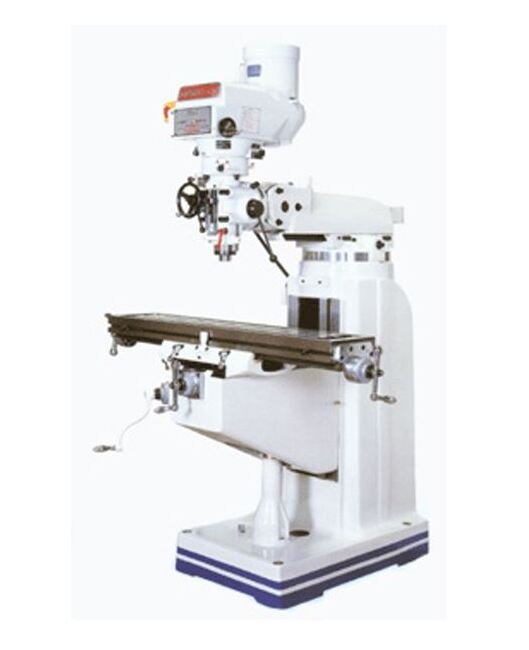

Birmingham B3S-800 Milling Machine with 9 x 49 Inch Table
Birmingham B3S-800 Milling Machine with 9 x 49 Inch Table
SKU:MIL-7fbf38
Achieve precision and reliability with the Birmingham B3S-800 Milling Machine designed for versatility and efficiency.
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
Birmingham B3S-800 Milling Machine with 9 x 49 Inch Table
$12,499.99
Quantity: 1
Claim Your Seller Account
Birmingham B3S-800 Milling Machine with 9 x 49 Inch Table
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your machining needs with precision and reliability using the Birmingham B3S-800 Milling Machine. Engineered with Taiwanese expertise and featuring a Chinese body, this machine offers exceptional versatility. The hardened and ground square ways, column, and knee ensure stability and rigidity. With a tilt range of up to 90 degrees, power feed options, and micrometer depth stop, this machine delivers accuracy and efficiency. Equipped with a counterbalanced quill and spindle, one-shot lubricator, and a robust spindle motor, it combines sensitivity with power for optimal performance. Ideal for a wide range of applications, this Birmingham Milling Machine is the perfect blend of superior engineering and cost-effective manufacturing.
Product Specifications
Technical Specs Brands
Birmingham Machinery
Technical Specs Cross Travel Y Axis
13-1/4 in
Technical Specs Model
B3S-800
Technical Specs Net Weight
2600 lb
Technical Specs Quill Feed Speed Revolutions
0.0508 | 0.1016 | 0.1524
Technical Specs Quill Travel
5 in | 125 mm
Technical Specs Spindle Motor Phase
1 | 3
Technical Specs Spindle Motor Power
2 hp | 3 hp
Technical Specs Spindle Speeds
90 to 5600 (16 Steps) rpm
Technical Specs Spindle Taper
R8
Technical Specs Voltage
220 V
Technical Specs Working Table Longitudinal Travel
35-1/2 in
