Birmingham HD 10x54 Vertical Milling Machine
Birmingham HD 10x54 Vertical Milling Machine
SKU:MIL-7e1e97
Powerful Birmingham HD 10x54 Vertical Milling Machine for precision and durability. Ideal for industrial machining.
Regular price
$15,999.99
Regular price
Sale price
$15,999.99
Unit price
per
Initiate Order
Birmingham HD 10x54 Vertical Milling Machine
$15,999.99
Quantity: 1
Claim Your Seller Account
Birmingham HD 10x54 Vertical Milling Machine
$15,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

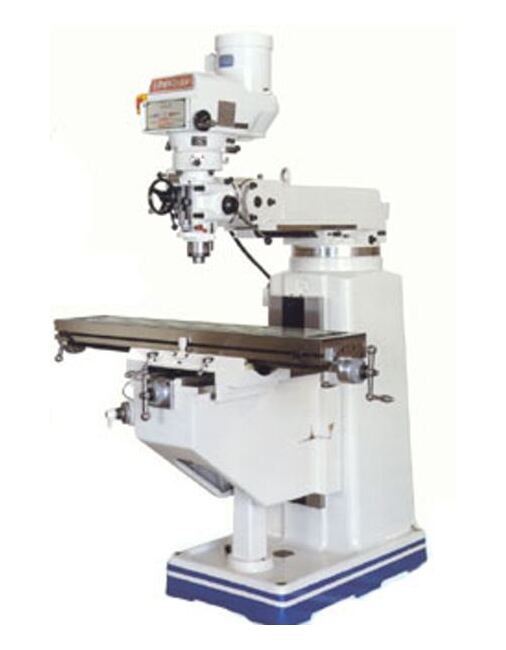

The Birmingham Heavy Duty 10 x 54 Inch Table Vertical Milling Machine is a powerhouse designed for precision and durability. Featuring high-grade Meehanite casting, box ways on the Y axis, and dovetail on X & Z ways, this machine ensures stability and accuracy in machining. With a 3 HP spindle motor, R8 spindle, and one-piece quill pinion and shaft, it offers exceptional performance. Moreover, it meets stringent quality standards with class 7 precision spindle bearings and hardened & ground worktable, making it ideal for industrial use.
Product Specifications
Features Features
10" x 54" Hardened & Ground Work TableHigh Grade Meehanite CastingClass 7 Precision Spindle BearingsBox Ways on Y AxisDovetail on X & Z WaysHardened & Ground On X & Y Axis Slide Ways Hardened & Ground Work Table with Tee SlotsHigh quality Taiwan-made milling headR-8 SpindleHigh precision China-made mill bodySuper strong column and baseLow maintenance machinesTilting & Rotating HeadHand & Power Spindle FeedsHigh precision leadscrewsSatin chrome finished dialsBuilt-in coolant column baseDouble knee and table locksRam equipped w/ double locksLarge diameter quill is chromedOne-piece quill pinion and shaftSpindle head is internally cooledHardened & ground waysHeavy-duty motor 3 phase or 1 phaseHigh precision class 7 spindle bearingsThree-stage power downfeed w/ auto stopOne year warranty and 2nd year extended
Standard Equipment Standard Equipment
Draw Bar 1 pc | Front Chip Guard 1 pc | One Shot Lube | Rear Chip Guard 1 pc | Tool box 1 set
Technical Specs Alternating Voltage Current Vac At 60 Hertz Hz
110 to 120 V
Technical Specs Brands
Birmingham Machinery
Technical Specs Cross Travel Y Axis
18 in
Technical Specs Dimension A
89 in
Technical Specs Dimension B
81 in
Technical Specs Dimension C
72 in
Technical Specs Footprint Size
5-7/64 x 8-55/64 in | 130 x 225 mm
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Height
13-25/64 in | 340 mm
Technical Specs Longitudinal Travel Hand Only
38 in
Technical Specs Longitudinal Travel With Power Feed
34.5 in
Technical Specs Maximum Power
1/8 hp | 100 W
Technical Specs Net Weight
3600 lb
Technical Specs Quill Travel
5 in | 5 mm
Technical Specs Ram Travel
18 in
Technical Specs Ram Turret Swivel
360 º
Technical Specs Speed
5000 to 20000 rpm
Technical Specs Spindle Motor Phase
1 | 3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
BPV-60-4300 (var) rpm | BPV-F 65-5000 (EVS) rpm
Technical Specs Spindle Speeds Type
vari-speed/EVS
Technical Specs Spindle Taper
R8
Technical Specs Table Load Capacity
700 lb | 800 lb
Technical Specs Table Size
10 x 54 in | 7-7/8 x 2-3/4 in | 200 x 70 mm
Technical Specs Table T Slot Size
5/8 x 3 in
Technical Specs Vertical Travel
18 in | 2.75 in | 70 mm
Technical Specs Voltage
220 V | 440 V
Technical Specs Weight
15.5 lb | 7 kg
Technical Specs X Y Travel
1-13/16 in | 5-17/64 in | 134 mm | 46 mm
