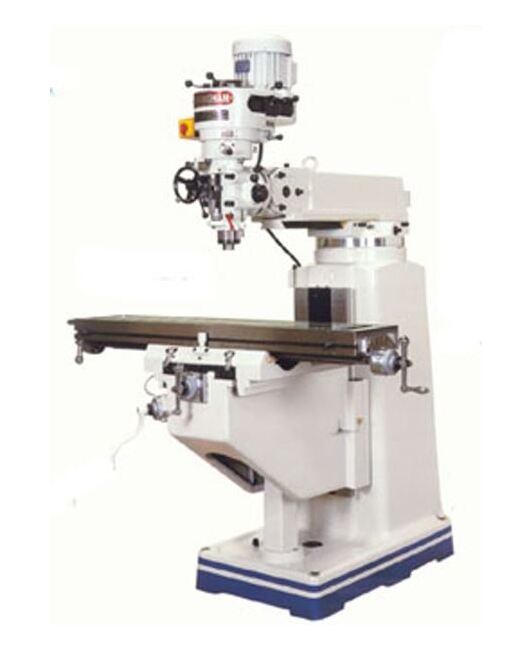

Birmingham Heavy Duty Vertical Milling Machine - 10 x 54 in
Birmingham Heavy Duty Vertical Milling Machine - 10 x 54 in
SKU:MIL-093466
Powerful Birmingham Heavy Duty Milling Machine - Precision meets durability for professional machining needs.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Birmingham Heavy Duty Vertical Milling Machine - 10 x 54 in
$18,999.00
Quantity: 1
Claim Your Seller Account
Birmingham Heavy Duty Vertical Milling Machine - 10 x 54 in
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Birmingham Heavy Duty 10 x 54 Inch Vertical Milling Machine is a powerhouse in precision machining. With features like a hardened & ground work table, high-grade Meehanite casting, and Class 7 spindle bearings, this machine offers superior accuracy and durability. Its compliance with industry standards ensures reliability for government and institutional buyers needing top-tier performance.
Product Specifications
Features Features
10" x 54" Hardened & Ground Work TableHigh Grade Meehanite CastingClass 7 Precision Spindle BearingsBox Ways on Y AxisDovetail on X & Z WaysHardened & Ground On X & Y Axis Slide Ways Hardened & Ground Work Table with Tee SlotsTurcite "B" On Saddle Square Way ( Y Axis ) on Variable Speed ModelsHardened & Ground Chrome QuillTilting & Rotating HeadHand & Power Spindle FeedsClass 7 SpindleR-8 SpindleChromed QuillCertified Meehanite CastingsTurcite B on Female Surfaces10" x 54" TableEasy to Read DialsOne Shot LubricationDove Tail Ways Table and KneeSquare Ways on SaddleHardened and Ground TableHardened and Ground X and Y SlidewaysDual Table LocksDual Knee LocksCoolant Ready Base
Note Note
Spindle motor 8 speeds
Technical Specs Brands
Birmingham Machinery
Technical Specs Cross Travel Y Axis
18 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Height
72 in
Technical Specs Length
89 in
Technical Specs Longitudinal Travel Hand Only
38 in
Technical Specs Longitudinal Travel With Power Feed
34 1/4 in
Technical Specs Net Weight
3500 lb
Technical Specs Quill Travel
5 in
Technical Specs Ram Travel
18 in
Technical Specs Ram Turret Swivel
360 º
Technical Specs Spindle Motor Phase
2 | 3
Technical Specs Spindle Motor Power
2 hp | 3 hp
Technical Specs Spindle Speeds 16 Speed
90 to 5600 rpm
Technical Specs Spindle Speeds 8 Speed 1 Phase Unit
90 to 2800 rpm
Technical Specs Spindle Speeds Type
step pulley
Technical Specs Spindle Taper
R8
Technical Specs Table Load Capacity
800 lb
Technical Specs Table Size
10 x 54 in
Technical Specs Table T Slot Size
5/8 x 3 in
Technical Specs Vertical Travel
18 in
Technical Specs Width
81 in
