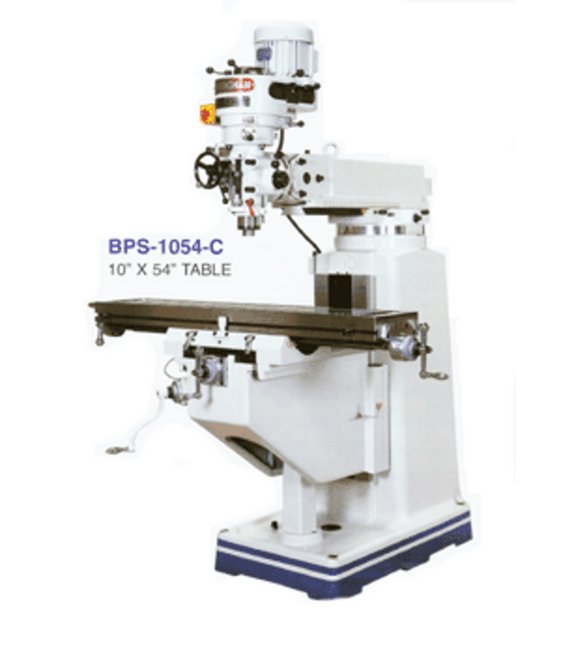

The Birmingham Heavy Duty 10 x 54 Inch Table Vertical Milling Machine combines Taiwanese head precision with a rugged Chinese body. With a 3 hp spindle motor, this machine offers power and accuracy for a wide range of work requirements. Featuring hardened and ground square ways, column, and knee, it ensures maximum rigidity and stability. The machine's power quill feeds, front and rear chip guards, and counterbalanced quill enhance operator safety and efficiency. With compliance to industry standards and certifications, this milling machine is a reliable choice for industrial and government procurement needs.
Product Specifications
Features Features
Taiwanese head and Chinese body. The vertical head may be tilted to 90 degree from the vertical position to accommodate a wide range of work requirements. Hardened and ground square ways, column and knee. Power down and up feed. Front and rear chip guards. Counter balanced quill and spindle provides extreme sensitivity for operator touch. One shot lubricator for long & cross ways. Micrometer depth stop is graduated in 0.001â Machine castings offers maximum rigidity and stability by incorporating extra heavy ribbing in the construction.
Technical Specs Brands
Birmingham Machinery
Technical Specs Cross Travel Y Axis
16 in
Technical Specs Longitudinal Travel Hand Only
39 in
Technical Specs Maximum Distance Spindle To Column
18 3/4 in | 20 in
Technical Specs Minimum Distance To Column
6 3/4 in
Technical Specs Power Quill Feeds
0.0015 in/rev | 0.003 in/rev | 0.006 in/rev
Technical Specs Quill Travel
5 in
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 4300 rpm
Technical Specs Spindle Taper
R8
Technical Specs Table Feed
36 in
Technical Specs Table Size
10 x 54 in
Technical Specs Vertical Knee Travel
19 1/2 in
Technical Specs Voltage
220 V | 230 V | 460 V
Technical Specs Weight
3000 lb
