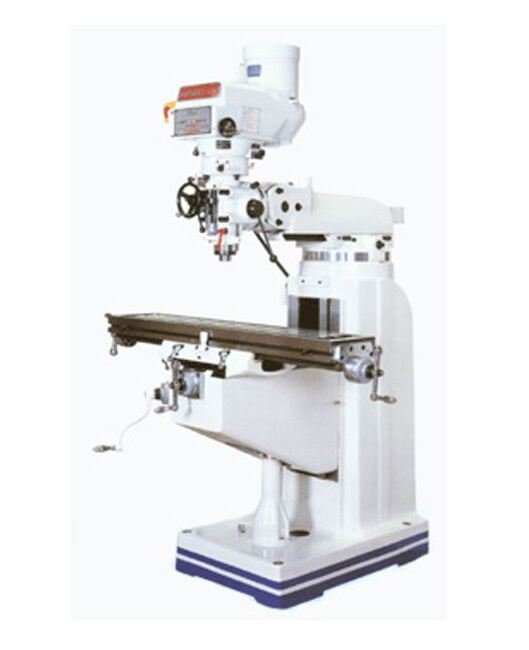

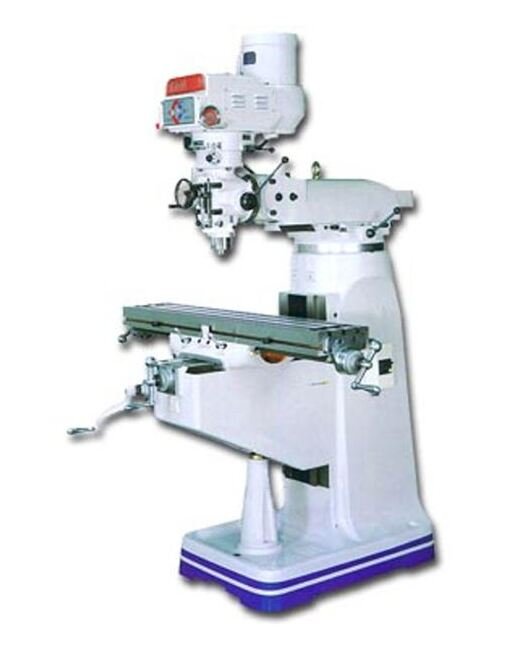

Birmingham Machinery B3V-800P Vertical Milling Machine
Birmingham Machinery B3V-800P Vertical Milling Machine
SKU:MIL-266437
Achieve precision and stability with the Birmingham Machinery B3V-800P Vertical Milling Machine. Perfect for diverse work needs.
Regular price
$11,499.99
Regular price
Sale price
$11,499.99
Unit price
per
Initiate Order
Birmingham Machinery B3V-800P Vertical Milling Machine
$11,499.99
Quantity: 1
Claim Your Seller Account
Birmingham Machinery B3V-800P Vertical Milling Machine
$11,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Birmingham Machinery B3V-800P Vertical Milling Machine combines superior Taiwanese engineering with cost-saving benefits of Chinese manufacturing. With a tiltable vertical head allowing up to 90-degree adjustments, this machine offers extreme operator sensitivity through counterbalanced quill and spindle design. Its hardened and ground square ways, column, and knee ensure durability and precision. Featuring power feed, chip guards, one-shot lubrication, and a micrometer depth stop, this machine maximizes rigidity and stability with heavy ribbed castings. Ideal for various work requirements, it includes a digital readout and power table feed for enhanced functionality.
Product Specifications
Technical Specs Brands
Birmingham Machinery
Technical Specs Cross Travel Y Axis
13-1/4 in
Technical Specs Included Items
Digital Readout & Power Table Feed
Technical Specs Model
B3V-800P
Technical Specs Net Weight
2600 lb
Technical Specs Quill Feed Speed Revolutions
0.002 | 0.004 | 0.006
Technical Specs Quill Travel
5 in | 125 mm
Technical Specs Spindle Motor Phase
1 | 3
Technical Specs Spindle Motor Power
2 hp | 3 hp
Technical Specs Spindle Speeds
60 to 4300 rpm
Technical Specs Spindle Taper
R8
Technical Specs Voltage
220 V
Technical Specs Working Table Longitudinal Travel
35-1/2 in
