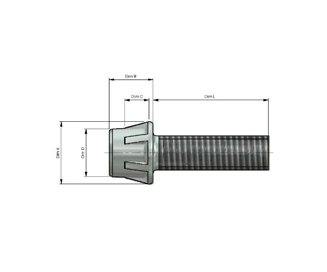

Bisco 1/2-20 Steel Self-Clinching Blind Stud, 61mm Length

Name: Bisco 1/2-20 Steel Self-Clinching Blind Stud, 61mm Length
Brand: bisco industries
SKU: BIS-0969a2
Price: 12.99 USD
Availability: OutOfStock

SKU:BIS-0969a2

High-quality Bisco 1/2-20 Steel Self-Clinching Blind Stud for secure and easy assembly. Complies with industrial standards.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your assembly projects with the Bisco 1/2-20 Thread Size Steel Self-Clinching Blind Stud. Made of high-quality steel with Zinc and Clear Trivalent Passivation, this stud offers superior durability. With a flange diameter of 17.7mm and a tonnage capacity of 5.0 to 10.0mm, it ensures secure fastening on material thicknesses ranging from 0.7mm to 3mm. The fine coarseness thread and self-clinching design make installation a breeze. This product complies with strict steel grade 8 standards, ideal for industrial applications requiring reliability and strength.

Product Specifications

Specifications Can Diameter

13.3 mm

Specifications Fastener Type

Self-Clinching

Specifications Flange Diameter

17.7 mm

Specifications Length

61 mm

Specifications Material

Steel

Specifications Material Thickness

0.7 to 3 mm

Specifications Overall Head Height

10.85 mm

Specifications Plating Finish

Zinc and Clear Trivalent Passivation

Specifications Sheet Hole Size

6.9 to 8.9 mm

Specifications Spline Length

5.65 mm

Specifications Steel Grade

Specifications Thread Coarseness

Fine

Specifications Thread Size

1/2-20

Specifications Tonnage Typical

5.0 to 10.0 mm

Specifications Treatment

Passivated
