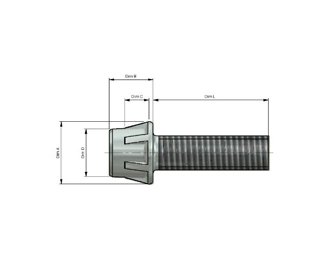

Bisco 1/4-20 Steel Self-Clinching Blind Stud (31mm)

Name: Bisco 1/4-20 Steel Self-Clinching Blind Stud (31mm)
Brand: bisco industries
SKU: BIS-f68959
Price: 15.99 USD
Availability: OutOfStock

SKU:BIS-f68959

Durable Bisco 1/4-20 Steel Self-Clinching Blind Stud - Ideal for industrial applications. 31mm length, Zinc plating. Secure fastening.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bisco 1/4-20 Steel Self-Clinching Blind Stud is a reliable fastening solution designed to meet the stringent demands of industrial applications. With a thread size of 1/4-20 and a length of 31mm, this stud is constructed from high-quality steel with Zinc and Clear Trivalent Passivation plating for enhanced durability and corrosion resistance. Featuring precise specifications including a Can Diameter of 9.97mm, Flange Diameter of 13.12mm, and Material Thickness ranging from 0.7 to 3mm, this self-clinching stud ensures secure attachment in materials with a sheet hole size of 5.1 to 6.9mm. The coarse Thread Coarseness and Steel Grade of 9 make it suitable for a wide range of applications, offering reliable performance under varying tonnage conditions.

Product Specifications

Specifications Can Diameter

9.97 mm

Specifications Fastener Type

Self-Clinching

Specifications Flange Diameter

13.12 mm

Specifications Length

31 mm

Specifications Material

Steel

Specifications Material Thickness

0.7 to 3 mm

Specifications Overall Head Height

9.1 mm

Specifications Plating Finish

Zinc and Clear Trivalent Passivation

Specifications Sheet Hole Size

5.1 to 6.9 mm

Specifications Spline Length

4.95 mm

Specifications Steel Grade

Specifications Thread Coarseness

Coarse

Specifications Thread Size

1/4-20

Specifications Tonnage Typical

5.0 to 10.0 mm

Specifications Treatment

Passivated
