Bisco 1/4-20 Thread Steel Self-Clinching Blind Stud, 16mm Length

Name: Bisco 1/4-20 Thread Steel Self-Clinching Blind Stud, 16mm Length
Brand: bisco industries
SKU: BIS-6e0e3c
Price: 13.99 USD
Availability: OutOfStock

SKU:BIS-6e0e3c

High-quality Bisco 1/4-20 Thread Steel Self-Clinching Stud for secure component attachment in various materials.

$13.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

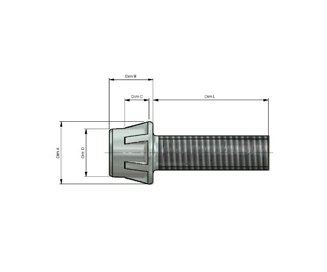

The Bisco 1/4-20 Thread Steel Self-Clinching Blind Stud in a 16mm length is crafted from high-grade steel with a zinc and clear trivalent passivation finish for superior durability and corrosion resistance. Designed to securely attach components in various materials, this self-clinching stud features precise dimensions including a 9.97mm Can Diameter, 13.12mm Flange Diameter, and 4.95mm Spline Length. Meeting stringent industrial standards, this stud offers reliable performance, easy installation, and exceptional longevity.

Product Specifications

Specifications Can Diameter

9.97 mm

Specifications Fastener Type

Self-Clinching

Specifications Flange Diameter

13.12 mm

Specifications Length

16 mm

Specifications Material

Steel

Specifications Material Thickness

0.7 to 3 mm

Specifications Overall Head Height

9.1 mm

Specifications Plating Finish

Zinc and Clear Trivalent Passivation

Specifications Sheet Hole Size

5.1 to 6.9 mm

Specifications Spline Length

4.95 mm

Specifications Steel Grade

Specifications Thread Coarseness

Coarse

Specifications Thread Size

1/4-20

Specifications Tonnage Typical

5.0 to 10.0 mm

Specifications Treatment

Passivated

Bisco 1/4-20 Thread Steel Self-Clinching Blind Stud, 16mm Length
