Bisco 1/4-20 Thread Steel Self-Clinching Blind Stud, 49mm Length

Name: Bisco 1/4-20 Thread Steel Self-Clinching Blind Stud, 49mm Length
Brand: bisco industries
SKU: BIS-fdc7c0
Price: 12.99 USD
Availability: OutOfStock

SKU:BIS-fdc7c0

High-quality Bisco 1/4-20 Thread Steel Self-Clinching Blind Stud for secure and durable fastening.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

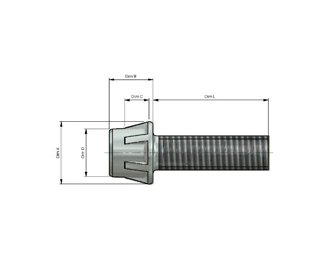

The Bisco 1/4-20 Thread Steel Self-Clinching Blind Stud is a reliable fastening solution suitable for a wide range of applications. Made of high-quality steel with a zinc and clear trivalent passivation finish, this blind stud offers superior durability and corrosion resistance. With precise dimensions including a 9.97mm can diameter and 13.12mm flange diameter, it is designed for effortless installation on materials ranging from 0.7mm to 3mm in thickness. The coarse 1/4-20 thread size ensures a secure fit, while its self-clinching design guarantees excellent retention strength. Ideal for projects requiring a tonnage typical of 5.0 to 10.0mm, this stud meets stringent quality standards for reliable performance.

Product Specifications

Specifications Can Diameter

9.97 mm

Specifications Fastener Type

Self-Clinching

Specifications Flange Diameter

13.12 mm

Specifications Length

49 mm

Specifications Material

Steel

Specifications Material Thickness

0.7 to 3 mm

Specifications Overall Head Height

9.1 mm

Specifications Plating Finish

Zinc and Clear Trivalent Passivation

Specifications Sheet Hole Size

5.1 to 6.9 mm

Specifications Spline Length

4.95 mm

Specifications Steel Grade

Specifications Thread Coarseness

Coarse

Specifications Thread Size

1/4-20

Specifications Tonnage Typical

5.0 to 10.0 mm

Specifications Treatment

Passivated

Bisco 1/4-20 Thread Steel Self-Clinching Blind Stud, 49mm Length
