Bisco 1/4-28 Self-Clinching Blind Stud, 22mm Steel

Name: Bisco 1/4-28 Self-Clinching Blind Stud, 22mm Steel
Brand: bisco industries
SKU: BIS-aafb1e
Price: 12.99 USD
Availability: OutOfStock

SKU:BIS-aafb1e

Secure self-clinching stud with 1/4-28 thread, 22mm length, zinc & clear passivation. Reliable and easy to install.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bisco 1/4-28 Steel Self-Clinching Blind Stud ensures secure fastening in various materials, featuring a 1/4-28 fine thread size, 22mm length, and zinc and clear trivalent passivation for corrosion resistance. With a steel grade of 9 and self-clinching design, this stud offers reliable performance and ease of installation. Ideal for applications requiring a tonnage of 5.0 to 10.0mm, meeting stringent procurement standards.

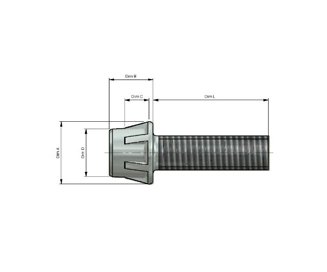

Product Specifications

Specifications Can Diameter

9.97 mm

Specifications Fastener Type

Self-Clinching

Specifications Flange Diameter

13.12 mm

Specifications Length

22 mm

Specifications Material

Steel

Specifications Material Thickness

0.7 to 3 mm

Specifications Overall Head Height

9.1 mm

Specifications Plating Finish

Zinc and Clear Trivalent Passivation

Specifications Sheet Hole Size

5.1 to 6.9 mm

Specifications Spline Length

4.95 mm

Specifications Steel Grade

Specifications Thread Coarseness

Fine

Specifications Thread Size

1/4-28

Specifications Tonnage Typical

5.0 to 10.0 mm

Specifications Treatment

Passivated
