Bisco 1/4-28 Steel Self-Clinching Blind Stud - 58mm Length
Bisco 1/4-28 Steel Self-Clinching Blind Stud - 58mm Length
SKU:BIS-0018fd
High-quality Bisco 1/4-28 Steel Self-Clinching Blind Stud with zinc plating and clear trivalent passivation. Durable and easy to install for secure fastening.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Bisco 1/4-28 Steel Self-Clinching Blind Stud - 58mm Length
$12.99
Quantity: 1
Claim Your Seller Account
Bisco 1/4-28 Steel Self-Clinching Blind Stud - 58mm Length
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

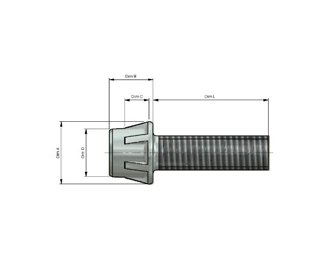

The Bisco 1/4-28 Steel Self-Clinching Blind Stud is a premium fastening solution constructed from high-quality steel with zinc plating and clear trivalent passivation for superior corrosion resistance. With a can diameter of 9.97mm, flange diameter of 13.12mm, and thread coarseness of fine 1/4-28, this stud is designed for efficiency and reliability. Its self-clinching design ensures secure attachment on material thicknesses ranging from 0.7mm to 3mm, meeting stringent industry standards for durability and performance. Ideal for a wide range of applications, this stud offers easy installation and long-lasting strength.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Can Diameter
9.97 mm
Specifications Fastener Type
Self-Clinching
Specifications Flange Diameter
13.12 mm
Specifications Length
58 mm
Specifications Material
Steel
Specifications Material Thickness
0.7 to 3 mm
Specifications Overall Head Height
9.1 mm
Specifications Plating Finish
Zinc and Clear Trivalent Passivation
Specifications Sheet Hole Size
5.1 to 6.9 mm
Specifications Spline Length
4.95 mm
Specifications Steel Grade
8
Specifications Thread Coarseness
Fine
Specifications Thread Size
1/4-28
Specifications Tonnage Typical
5.0 to 10.0 mm
Specifications Treatment
Passivated
