Bisco Steel Self-Clinching Blind Stud 1/2-20 Thread Size, 77mm

Name: Bisco Steel Self-Clinching Blind Stud 1/2-20 Thread Size, 77mm
Brand: bisco industries
SKU: BIS-743892
Price: 8.99 USD
Availability: OutOfStock

SKU:BIS-743892

High-grade Bisco Steel Self-Clinching Blind Stud with 1/2-20 thread size, 77mm length, and Zinc & Clear Trivalent Passivation for durable fastening applications.

$8.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

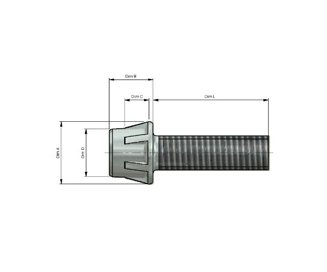

Enhance your assembly with the Bisco Steel Self-Clinching Blind Stud featuring a 1/2-20 thread size and 77mm length. Made of high-grade steel and plated with Zinc & Clear Trivalent Passivation, this stud ensures durability and corrosion resistance. With precise dimensions including 13.3mm can diameter, 17.7mm flange diameter, and a spline length of 5.65mm, it guarantees a secure and efficient fastening solution. Meeting stringent industry standards, this self-clinching stud is ideal for applications requiring reliability and compliance.

Product Specifications

Specifications Can Diameter

13.3 mm

Specifications Fastener Type

Self-Clinching

Specifications Flange Diameter

17.7 mm

Specifications Length

77 mm

Specifications Material

Steel

Specifications Material Thickness

0.7 to 3 mm

Specifications Overall Head Height

10.85 mm

Specifications Plating Finish

Zinc and Clear Trivalent Passivation

Specifications Sheet Hole Size

6.9 to 8.9 mm

Specifications Spline Length

5.65 mm

Specifications Steel Grade

Specifications Thread Coarseness

Fine

Specifications Thread Size

1/2-20

Specifications Tonnage Typical

5.0 to 10.0 mm

Specifications Treatment

Passivated

Bisco Steel Self-Clinching Blind Stud 1/2-20 Thread Size, 77mm
