Bisco Steel Self-Clinching Blind Stud 1/4-28, 22mm Length

Name: Bisco Steel Self-Clinching Blind Stud 1/4-28, 22mm Length
Brand: bisco industries
SKU: BIS-68658f
Price: 14.99 USD
Availability: OutOfStock

SKU:BIS-68658f

Durable Bisco Steel Self-Clinching Blind Stud for secure and easy fastening on steel sheets. 1/4-28 thread, 22mm length, Zinc & Clear Trivalent Passivation.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

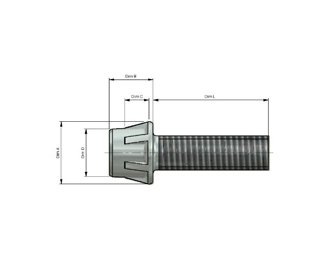

The Bisco Steel Self-Clinching Blind Stud in 1/4-28 thread size and 22mm length is a durable and reliable fastening solution for a wide range of applications. Constructed from high-grade steel with Zinc and Clear Trivalent Passivation finish, this stud offers excellent corrosion resistance. With precise dimensions including 9.97mm can diameter, 13.12mm flange diameter, and 5.1 to 6.9mm sheet hole size, it ensures a secure and snug fit. The self-clinching design provides easy installation on steel sheets between 0.7 to 3mm thickness, making it ideal for industrial and government projects requiring robust fastening solutions.

Product Specifications

Specifications Can Diameter

9.97 mm

Specifications Fastener Type

Self-Clinching

Specifications Flange Diameter

13.12 mm

Specifications Length

22 mm

Specifications Material

Steel

Specifications Material Thickness

0.7 to 3 mm

Specifications Overall Head Height

9.1 mm

Specifications Plating Finish

Zinc and Clear Trivalent Passivation

Specifications Sheet Hole Size

5.1 to 6.9 mm

Specifications Spline Length

4.95 mm

Specifications Steel Grade

Specifications Thread Coarseness

Fine

Specifications Thread Size

1/4-28

Specifications Tonnage Typical

5.0 to 10.0 mm

Specifications Treatment

Passivated

Bisco Steel Self-Clinching Blind Stud 1/4-28, 22mm Length
