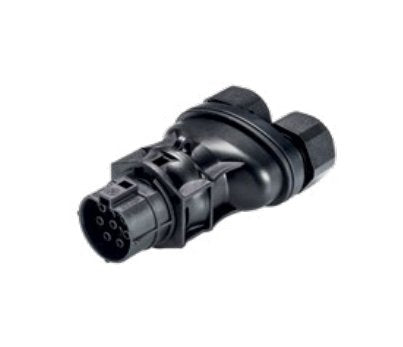

Black Female Splitter Connector 6mm Minimum Cable Diameter
Black Female Splitter Connector 6mm Minimum Cable Diameter
SKU:CIR-5a890e
High-quality Black Female Splitter Connector with 6mm Minimum Cable Diameter, ideal for outdoor use. Meets cULus-Listed and IEC standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Black Female Splitter Connector 6mm Minimum Cable Diameter
$29.99
Quantity: 1
Claim Your Seller Account
Black Female Splitter Connector 6mm Minimum Cable Diameter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Black Female Splitter Connector with a 6mm Minimum Cable Diameter is a reliable and durable solution for electrical connections. Manufactured by Wieland, this connector features a screw connection type and 7 poles, meeting cULus-Listed and IEC standards. With a voltage rating of 250V, 400V, and 600V, and a degree of protection of IP69, it ensures safe and efficient electrical distribution in outdoor environments. This connector supports wire sizes from 0.2 to 1.5 mm² (IEC) and 20 to 14 AWG (cURus), accommodating various cable specifications.
Product Specifications
Note Note
Technical details are subject to change
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) | 3 x 20 A + 4 x 5 A (USA)
Specifications Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Specifications Degree Of Protection According To Canadian Ul Rec
Type 4X/6P
Specifications Degree Of Protection According To International E
IP69
Specifications Maximum Cable Diameter
10 mm
Specifications Minimum Cable Diameter
6 mm
Specifications Model
Female
Specifications Number Of Poles
7
Specifications Standards
cULus-Listed | IEC
Specifications Voltage
250 V | 400 V | 600 V
Specifications Wire Size According To Canadian Ul Recognized Uni
20 to 14 AWG
Specifications Wire Size According To International Electrotechn
0.2 to 1.5 mm²
