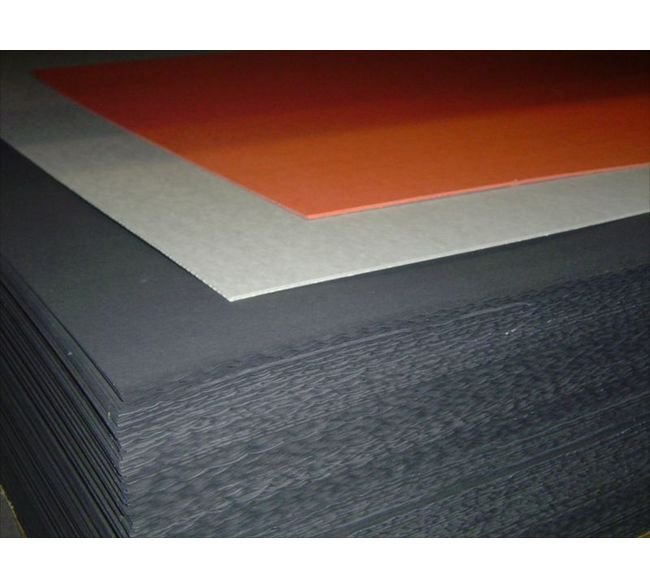

Black Fibre Sheet 0.020 - Commercial Grade Vulcanized Fibre
Black Fibre Sheet 0.020 - Commercial Grade Vulcanized Fibre
SKU:MAT-e40c05
Durable Black Fibre Sheet 0.020 - Ideal for washers, insulation, and gaskets. Meets ASTM, Mil-F, NEMA, and UL standards.
Regular price
$6.60
Regular price
Sale price
$6.60
Unit price
per
Initiate Order
Black Fibre Sheet 0.020 - Commercial Grade Vulcanized Fibre
$6.60
Quantity: 1
Claim Your Seller Account
Black Fibre Sheet 0.020 - Commercial Grade Vulcanized Fibre
$6.60
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Black Fibre Sheet 0.020, a Commercial Grade Vulcanized Fibre product, is engineered for exceptional durability and reliability. With a chemically pure cellulose composition, this sheet offers a range of applications, including washers, insulating plates, electric motor insulation, gaskets, and more. Featuring superior properties such as high mechanical strength, excellent resistance to heat and cold, and exceptional tear resistance, this sheet is a versatile solution for various industrial needs. Compliant with ASTM, Mil-F, NEMA, and UL standards, this fibre sheet ensures quality performance and longevity in diverse settings.
Product Specifications
Applications 0
Armature slot insulation, liners, washers, coil insulation, arc shields, formed specialties and gasket stock.
Continuous Heat Resistance Electrical
115 ºC
Continuous Heat Resistance High Ampere Arc Ignition
120 sec
Continuous Heat Resistance Hot Wire Ignition
60-119 sec
Continuous Heat Resistance Mechanical
110 ºC
Specifications Arc Resistance
125 sec
Specifications Bond Strength
900 psi
Specifications Bursting Strength
325 psi
Specifications Coefficient Of Friction Fibre On Fibre
0.16
Specifications Coefficient Of Friction Fibre On Smooth Cast Iron
0.21
Specifications Color
Black
Specifications Comparative Tracking Index
400 - 599 V
Specifications Compressive Strength
35000 psi
Specifications Density
1.20 gm/cc
Specifications Dielectric Strength
200 Volts/mil
Specifications Dimensional Change In Moisture Content Cd
0.25
Specifications Dimensional Change Per Percent Change Md
0.10 %
Specifications Dimensional Change Thickness
1.00 %
Specifications Dimensions
27 x 40 in
Specifications Flammability
0.5 in/min
Specifications Flammability Ul94
94HB
Specifications Flexural Strength Cd
16000 psi
Specifications Flexural Strength Md
29000 psi
Specifications Form
Sheet
Specifications Impact Strength Cd
2.0 ft.lbs/in
Specifications Impact Strength Md
2.5 ft.lbs/in
Specifications Modulus Of Elasticity In Flexural X 105 Cd
7
Specifications Modulus Of Elasticity In Flexural X 105 Md
10
Specifications Modulus Of Elasticity In Tension X 105 Cd
8
Specifications Modulus Of Elasticity In Tension X 105 Md
12
Specifications Pricepound 1000 Lbs
$5.69
Specifications Pricepound 100 199 Lbs
$7.52
Specifications Pricepound 13 49 Lbs
$9.34
Specifications Pricepound 200 499 Lbs
$6.60
Specifications Pricepound 500 999 Lbs
$6.15
Specifications Pricepound 50 99 Lbs
$8.43
Specifications Rockwell Hardness R Scale
70 divisions
Specifications Specific Heat
0.403 Btu/lb/ºF
Specifications Specific Volume
23.0 in³/lb
Specifications Tear Strength Cd
700 gm
