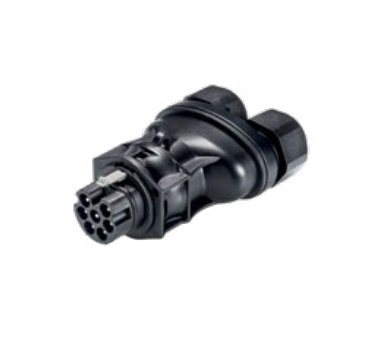

Black Male Splitter Connector for 6mm Cable Diameter

Name: Black Male Splitter Connector for 6mm Cable Diameter
Brand: Wieland Electric Inc.
SKU: CIR-cfb164
Price: 29.99 USD
Availability: OutOfStock

SKU:CIR-cfb164

Secure outdoor electrical connections with this Black Male Splitter Connector for 6mm cable diameter. Ideal for 7 poles and IP69 protection.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Black Male Splitter Connector is a reliable solution for outdoor circular electrical connections, offering 7 poles for secure and efficient wiring. With a screw connection type and cULus-Listed | IEC certifications, it ensures safe operations with a voltage range of 250V to 600V. This connector supports 3x20A + 4x5A current ratings as per IEC standards and provides IP69 protection, catering to demanding outdoor environments.

Product Specifications

Note Note

Technical details are subject to change

Specifications Color Of Codingcontact Carrier

Black

Specifications Connection Type

Screw Connection

Specifications Current According To Canadian Ul Recognized Unite

3 x 16 A + 4 x 2 A (Canada) | 3 x 20 A + 4 x 5 A (USA)

Specifications Current According To International Electrotechnic

3 x 20 A + 4 x 5 A

Specifications Degree Of Protection According To Canadian Ul Rec

Type 4X/6P

Specifications Degree Of Protection According To International E

IP69

Specifications Maximum Cable Diameter

10 mm

Specifications Minimum Cable Diameter

6 mm

Specifications Model

Male

Specifications Number Of Poles

Specifications Standards

cULus-Listed | IEC

Specifications Voltage

250 V | 400 V | 600 V

Specifications Wire Size According To Canadian Ul Recognized Uni

20 to 14 AWG

Specifications Wire Size According To International Electrotechn

0.2 to 1.5 mmÂ²
