Black Silicone Dual Flange Pull Plug - DFPP-M5
Black Silicone Dual Flange Pull Plug - DFPP-M5
SKU:SIL-c4ab05
Black Silicone Dual Flange Pull Plug with high temp rating, color-coded for easy ID & reusable. Ideal for industrial coating applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Black Silicone Dual Flange Pull Plug - DFPP-M5
$45.99
Quantity: 1
Claim Your Seller Account
Black Silicone Dual Flange Pull Plug - DFPP-M5
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

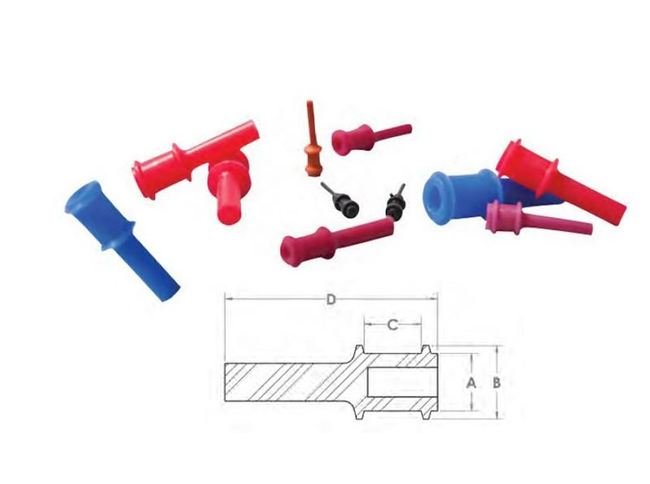

The Black Silicone Dual Flange Pull Plug is designed with precision to meet the demanding requirements of industrial applications. With dimensions of 0.160'' (4.06 mm) A, 0.273'' (6.93 mm) B, 0.245'' (6.22 mm) C, and 1.300'' (33.02 mm) D, it provides a secure fit for masking weld nuts and offers superior protection for lead-in and exit threads. Featuring a high temperature rating of 600°F (315°C), this plug ensures reliability during powder coating, e-coating, wet painting, anodizing, and plating processes. Color coded for easy identification, reusable, and easy to remove, it streamlines workflow efficiency and product quality.
Product Specifications
Specifications Color
Black
Specifications Dimension A
0.160 Inch | 4.06 mm
Specifications Dimension B
0.273 Inch | 6.93 mm
Specifications Dimension C
0.245 Inch | 6.22 mm
Specifications Dimension D
1.300 Inch | 33.02 mm
Specifications Features
Temperature Rating 600 °F/315 °C For Masking Weld Nuts Offers Additional Protection for Lead-in and Exit Threads For Easy Removal, Pull through after Coating Color Coded for Easy Identification and Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating
Specifications Quantitybag
1000
