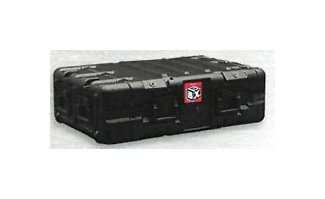

BlackBox 3U Rack Mount Case - Rugged Steel Rack Frame for Precision Equipment
BlackBox 3U Rack Mount Case - Rugged Steel Rack Frame for Precision Equipment
SKU:PEL-24981a
Secure your delicate equipment with the BlackBox 3U Rack Mount Case - Designed for strength and precision, meets ANSI/EIA 310-C standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
BlackBox 3U Rack Mount Case - Rugged Steel Rack Frame for Precision Equipment
$299.99
Quantity: 1
Claim Your Seller Account
BlackBox 3U Rack Mount Case - Rugged Steel Rack Frame for Precision Equipment
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BlackBox 3U Rack Mount Case from the Blackbox Rack Cases series features a 24" (61 cm) rugged steel rack frame with 10-32 threads, meeting ANSI/EIA 310-C standards. With a capacity of up to 100 lbs. (45 kg) and shock mounts offering 2" (5.1cm) of sway space, this rack case ensures optimal protection for delicate equipment. The case includes 2" (5.1cm) lid and 5" (12.7cm) lid with edge casters, ideal for applications such as rack mountable precision test equipment, medical diagnostic gear, and aerospace instrumentation.
Product Specifications
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.
Specifications Height Od
11.4 in | 289 mm
Specifications Length Od
38.5 in | 978 mm
Specifications Lid Id Back
5.2 in
Specifications Lid Id Front
2.2 in
Specifications Rack Height U Size
3U | 5.25 in | 133 mm
Specifications Rack Length
24.00 in | 610 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
6.2 ft³ | 0.18 m³
Specifications Weight
42 lb | 19.1 kg
Specifications Width Od
24.6 in | 625 mm
