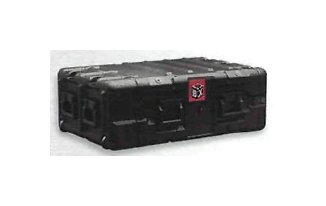

BlackBox 4U Rugged Steel Rack Mount Case
BlackBox 4U Rugged Steel Rack Mount Case
SKU:PEL-98fa7f
Durable 4U rack mount case meeting ANSI/EIA 310-C standards for up to 100 lbs equipment, with shock mounts.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
BlackBox 4U Rugged Steel Rack Mount Case
$299.99
Quantity: 1
Claim Your Seller Account
BlackBox 4U Rugged Steel Rack Mount Case
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BlackBox 4U Rack Mount Case from the Blackbox Rack Cases series is a durable solution designed to meet ANSI/EIA 310-C standards, suitable for applications up to 100 lbs. It features a rugged steel rack frame with 10-32 threads, offering 2" of sway space with shock mounts for equipment isolation. With precise specifications like a rack height of 4U and dimensions of 24" x 19" x 13.1", this case is ideal for securing delicate equipment in various industries including aerospace, military, medical, and more. The tool-free rack removal and individually-tuned shock mounts ensure optimal protection and operational efficiency.
Product Specifications
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.
Specifications Height Od
13.1 in | 333 mm
Specifications Length Od
38.5 in | 978 mm
Specifications Lid Id Back
5.2 in
Specifications Lid Id Front
2.2 in
Specifications Rack Height U Size
4U | 7.00 in | 178 mm
Specifications Rack Length
24.00 in | 610 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
7.2 ft³ | 0.2 m³
Specifications Weight
47 lb | 21.3 kg
Specifications Width Od
24.6 in | 625 mm
