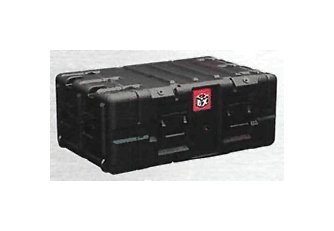

BlackBox 5U Rack Mount Case with Shock Mounts
BlackBox 5U Rack Mount Case with Shock Mounts
SKU:PEL-b09773
Protect your delicate equipment with the BlackBox 5U Rack Mount Case featuring shock mounts and ANSI/EIA 310-C compliance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
BlackBox 5U Rack Mount Case with Shock Mounts
$299.99
Quantity: 1
Claim Your Seller Account
BlackBox 5U Rack Mount Case with Shock Mounts
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BlackBox 5U Rack Mount Case offers unparalleled protection for delicate equipment up to 100 lbs. Its rugged steel frame with 10-32 threads meets ANSI/EIA 310-C standards. This case features individually tuned shock mounts, ensuring excellent shock and vibration dampening. Ideal for applications like precision test equipment, medical devices, and aerospace instrumentation, this case also includes tool-free rack removal for added convenience.
Product Specifications
Specifications Application
Rack mountable precision test equipment.Electro-mechanical.Medical and biological diagnostic equipment, memory storage devices.Meteorological instruments.Mobile operations.Broadcast and video gear.Laboratory equipment.Aerospace instrumentation.Servers, military mission planning.Command control equipment.Flight simulators.
Specifications Features
Ideal for delicate equipment that requires the most protection available, in the widest range of sizes.Individually tine-tuned shock mounts for each application provide excellent shock and vibration dampening plus cooling airflow for operating equipment.Security for equipment from 20-340 lbs.Recessed, zinc-plated, yellow chromate hardware holds up under duress and use.Tool-free rack removal.
Specifications Height Od
14.9 in | 378 mm
Specifications Length Od
38.5 in | 978 mm
Specifications Lid Id Back
5.2 in
Specifications Lid Id Front
2.2 in
Specifications Rack Height U Size
5U | 8.75 in | 222 mm
Specifications Rack Length
24.00 in | 610 mm
Specifications Rack Width
19.00 in | 483 mm
Specifications Shipping Cube
8.2 ft³ | 0.23 m³
Specifications Weight
48 lb | 21.8 kg
Specifications Width Od
24.6 in | 625 mm
