Blind Hole Circuit Board Support 82-M Series
Blind Hole Circuit Board Support 82-M Series
SKU:01C-7bb97c
Enhance PCB assembly with durable Blind Hole Circuit Board Supports 82-M Series. RoHS compliant, ASTM D 4066, PA111 standards met. Pack of 1000.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Blind Hole Circuit Board Support 82-M Series
$99.99
Quantity: 1
Claim Your Seller Account
Blind Hole Circuit Board Support 82-M Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

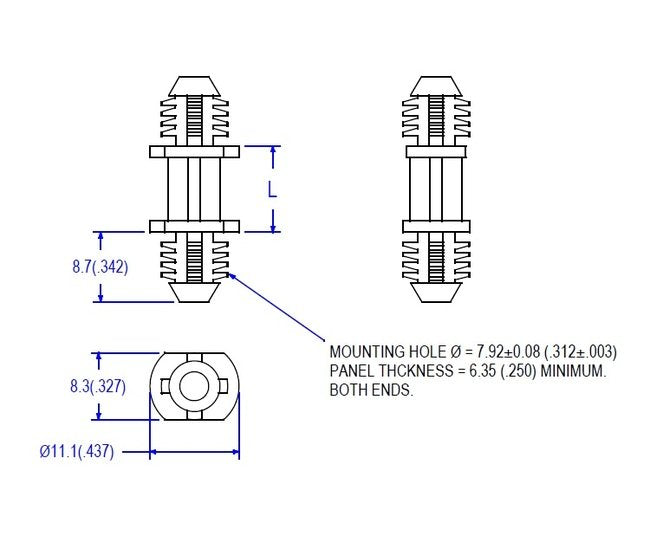

Enhance your PCB assembly with the 82-M Series Blind Hole Circuit Board Support designed for .312 Mtg Hole with a .250 Minimum Thick Chassis. These durable supports are made from Nylon 66 UL94V-2 material (UL94V-0 available) and comply with RoHS regulations. With a temperature range of -40 to 185F, they ensure secure mounting and reliability for your electronic components. Each package contains 1000 supports to meet your production needs. ASTM D 4066 and PA111 compliant.
Product Specifications
Specifications Dim L 015
.472 (12) inches (mm)
