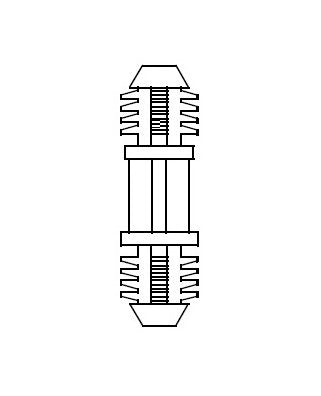

Blind Hole Circuit Board Support 82-M Series
Blind Hole Circuit Board Support 82-M Series
SKU:01C-8cb846
Durable Blind Hole Circuit Board Support for secure PCB mounting. RoHS compliant, temperature-resistant, and ASTM D 4066, PA111 certified.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Blind Hole Circuit Board Support 82-M Series
$24.99
Quantity: 1
Claim Your Seller Account
Blind Hole Circuit Board Support 82-M Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

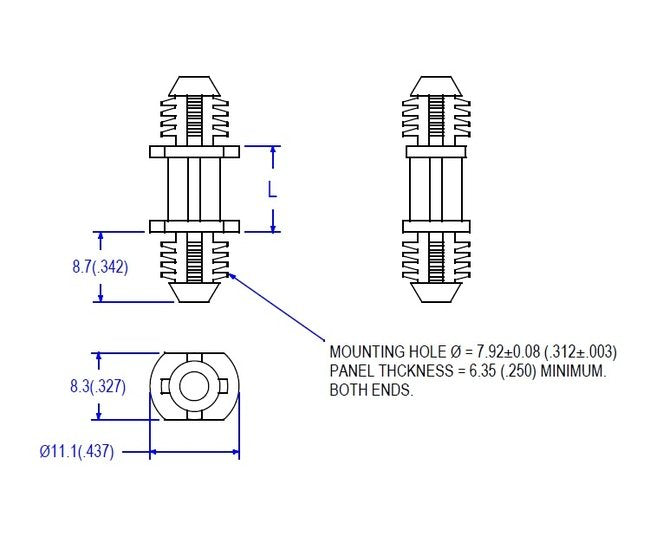

The Blind Hole Circuit Board Support from the 82-M Series is designed for PCBs with a .312 Mtg Hole on .250 Minimum Thick Chassis. Constructed from Nylon 66 UL94V-2 (UL94V-0 available), this support features Blind Hole/X-Mass Tree Style for secure mounting. With its UL File No: E41938 and RoHS compliance, it ensures safety and environmental responsibility. The support's temperature range of -40 to 185F (-40 to 85C) guarantees reliability in various conditions. ASTM D 4066 and PA111 compliant, this support is a reliable choice for your circuit board needs.
Product Specifications
Specifications Dim L 015
.236 (6) inches (mm)
