Blind Hole Circuit Board Support for .312 MTG Hole
Blind Hole Circuit Board Support for .312 MTG Hole
SKU:01C-7c62cc
Durable Blind Hole Circuit Board Support for .312 MTG Hole, RoHS Compliant, Temperature Range -40 to 185F
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Blind Hole Circuit Board Support for .312 MTG Hole
$24.99
Quantity: 1
Claim Your Seller Account
Blind Hole Circuit Board Support for .312 MTG Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

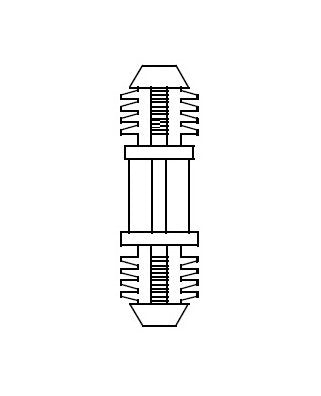

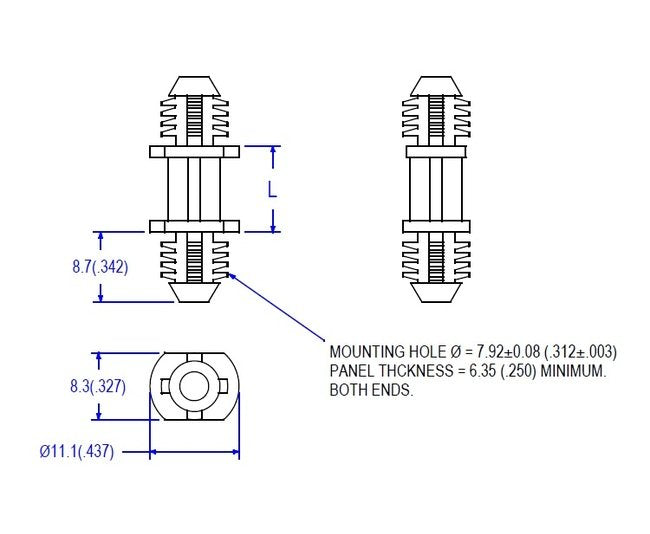

The 82-M Series Blind Hole Circuit Board Support is designed for .312 Mounting Holes on .250 Minimum Thick Chassis. Crafted from Nylon 66 UL94V-2 material (UL94V-0 available), this PCB support features a Blind Hole/X-Mass Tree Style for secure installation. With a temperature range of -40 to 185F (-40 to 85C), this support ensures reliable performance in diverse environments. Compliant with RoHS standards, ASTM D 4066, and PA111, it offers durability, stability, and safety for your electronic assemblies.
Product Specifications
Specifications Dim L 015
.787 (20) inches (mm)
