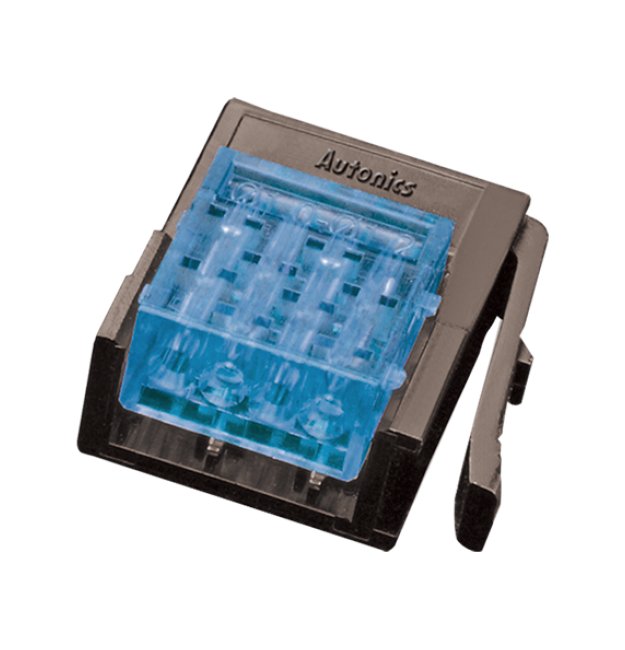

Blue 4-Pin Wire Mount Plug Connector AWG20-22
Blue 4-Pin Wire Mount Plug Connector AWG20-22
SKU:PRO-a55b39
Premium 4-pin wire mount plug connector for reliable and secure connectivity in high-voltage applications. Blue color, 22-20 AWG wire size, 3.0A max rated current.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Blue 4-Pin Wire Mount Plug Connector AWG20-22
$2.10
Quantity: 1
Claim Your Seller Account
Blue 4-Pin Wire Mount Plug Connector AWG20-22
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Blue 4-Pin Wire Mount Plug Connector is a high-quality sensor connector designed for maximum alternating current/direct current voltage of ~250V. Made with C5210 terminal material coated with Gold 0.2μm, and a body crafted from Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) meeting UL94V-0 standards, this connector ensures reliable performance. With a maximum rated current of 3.0A, minimum terminal retention of 1.4 kgf, and wire size compatibility of 22-20 AWG, it guarantees secure and efficient connectivity. This connector is ideal for various applications requiring a durable and precise connection solution.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Blue
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Blue
Specifications Cover Diameter
1.2 to 1.6 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.32 to 0.5 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.32 to 0.5 mm²
Specifications Wire Size
22-20 AWG
