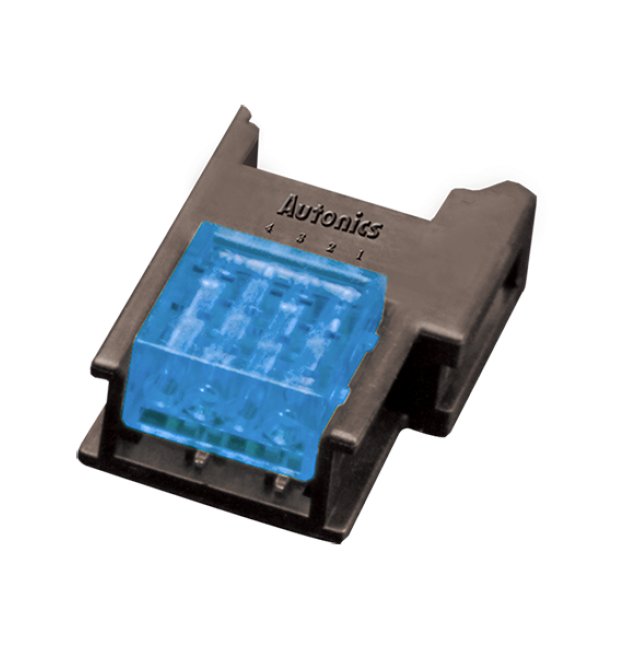

Blue 4-Pin Wire Mount Socket Connector
Blue 4-Pin Wire Mount Socket Connector
SKU:PRO-6b69c0
Secure your connections with the Blue 4-Pin Wire Mount Socket Connector, designed for durability and reliability in critical applications.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Blue 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Claim Your Seller Account
Blue 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Blue 4-Pin Wire Mount Socket Connector offers a reliable connection solution with a maximum AC/DC voltage of ~250V. Crafted with C5210 gold-plated terminals and Polycarbonate/ABS body, this sensor connector ensures durability. It features a cover color in blue, a maximum current rating of 3.0A, and meets stringent industry standards for secure connectivity. With a weight of 0.56 lb, this connector is suitable for AWG20 to 22 wires with diameters ranging from 0.32 to 0.5mm.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Blue
Specifications Connector Type
Wire Mount Socket
Specifications Cover Color
Blue
Specifications Cover Diameter
1.2 to 1.6 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.32 to 0.5 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.32 to 0.5 mm²
Specifications Wire Size
22-20 AWG
