Blue A Beaded Indicating Silica Gel Desiccant 3.0-5.0mm
Blue A Beaded Indicating Silica Gel Desiccant 3.0-5.0mm
SKU:CHE-592afe
High-performance Blue A Silica Gel Desiccant, 3.0-5.0mm, color-changing indicator, 35% adsorption capacity, ideal for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Blue A Beaded Indicating Silica Gel Desiccant 3.0-5.0mm
$29.99
Quantity: 1
Claim Your Seller Account
Blue A Beaded Indicating Silica Gel Desiccant 3.0-5.0mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Blue A Beaded Indicating Silica Gel Desiccant offers superior moisture adsorption with a color-changing feature from blue to pink at optimal moisture levels. With a particle size of 3.0 to 5.0mm, this silica gel has an adsorption capacity of 35%, meeting industry standards such as MIL-D-3716-Type IV. Ideal for laboratory apparatuses, desiccant packaging, and more, this product ensures efficient moisture control and easy regeneration.
Product Specifications
Key Features And Benefits 0
Robust Wide Pattern Body in PVC â No Need for Spacers or specialty flanges. One-Piece Disc and Shaft Design Designed for ANSI150 and PN10 Flanges High Cv Rating Equal to Metal Check Valves Lower Closing Pressure Than Swing Check Valves Integral Bolt Eyes for Ease of Installation for Large Sizes Can be Installed in Vertical or Horizontal Position FPM or EPDM Gasket and Face Seal Pressure Rated to 150 PSI / PN10 In All Sizes
Materials 0
PVC per ASTM D1784 Cell Class 12454 CPVC per ASTM D1784 Cell Class 23447 GFPP per ASTM D4101 Cell Class 85580 FPM and EPDM Gasket and Disc Seals
Options 0
316 Stainless Steel or Hastelloy® Disc Spring Return

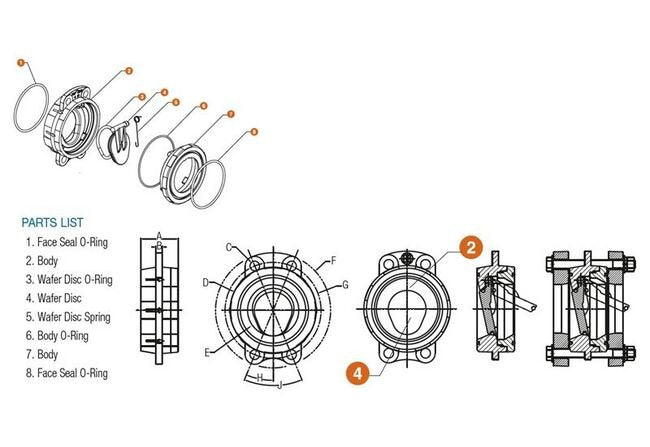

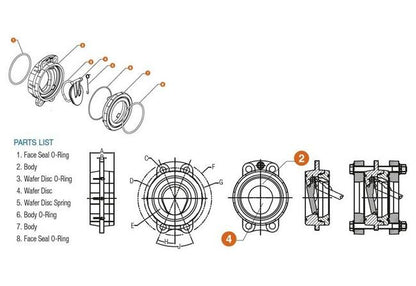

Specifications A
2.30 in | 58.42 mm
Specifications B
0.25 in | 6.35 mm
Specifications D
4.75 in | 120.65 mm
Specifications E
2.43 in | 61.72 mm
Specifications F
6.00 in | 152.40 mm
Specifications Flow Capacity Cv
155
Specifications H
0 º
Specifications J
0 º
Specifications Material
CPVC
Specifications Opening Pressure Estimated
1 psi
Specifications O Rings Seals
FPM

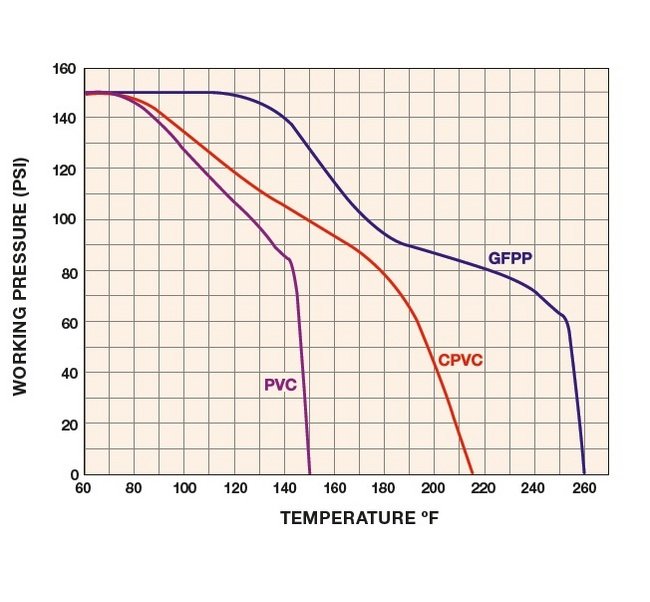

Specifications Pressure Rating
150 psi at 70°F Non-Shock
Specifications Sealing Pressure With Or Without Spring
3 psi
Specifications Size
2-1/2"
Specifications Spring Material
No Spring
Specifications Weight
0.74 kg | 1.62 lb
Applications 0
Water and Wastewater Treatment Water / Theme Parks Chemical Processing Aquatic and Animal Life Support Systems Marine and Corrosive Environments Mining Landfills
