Blue Max High Performance Push-Pull Control Cable
Blue Max High Performance Push-Pull Control Cable
SKU:PUS-2a28db
Durable Blue Max Push-Pull Control Cable with Stainless Steel Fittings for Marine and Racing Applications
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Blue Max High Performance Push-Pull Control Cable
$59.99
Quantity: 1
Claim Your Seller Account
Blue Max High Performance Push-Pull Control Cable
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

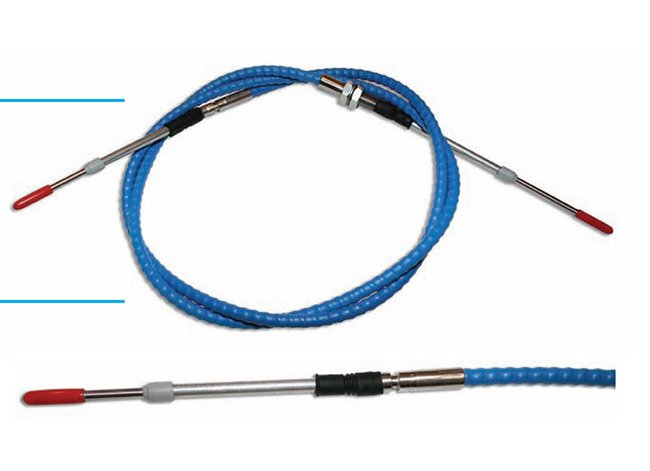

The Blue Max High Performance Push-Pull Control Cable is designed for precision and durability in demanding environments. With stainless steel fittings at both ends, this cable ensures corrosion resistance and longevity. Ideal for marine and racing applications, it features a 1x19 stainless steel wrapped inner member with an LDPE-covered conduit, offering high-temperature resistance and seamless operation. The cable is RHOS rated and meets stringent quality standards.
Product Specifications
Applications Marine Applications
ShiftThrottleTrimSlim line grooved conduit capNot Intended For Use as Steering Cable
Applications Racing Applications
ShiftFuel Shut OffChute ReleaseThrottleNot Intended For Use as Steering Cable
Design Parameters Minimum Bend Radius
4 "
Design Parameters Operating Temperature
-65 to 350 ºF
Design Parameters Travel Minimum Length
3 "
Features 0
Travel: 3.00"Bulkhead type (threaded) conduit caps, stainless steelClamp type (grooved) conduit caps, stainless steel10-32 end rod threadsBB, BC, CC options are all availableHigh temperature
Material 0
1 x 19 Stainless Steel Wrapped InnermemberRHOS RatedStainless SteelLDPE Covered (Blue) ConduitBinder Wire Conduit Core PTFE
Specifications End Fitting Combinations Tt Tg Gt Gg
T - Threaded Swivel/G - Grooved Swivel
Specifications Note

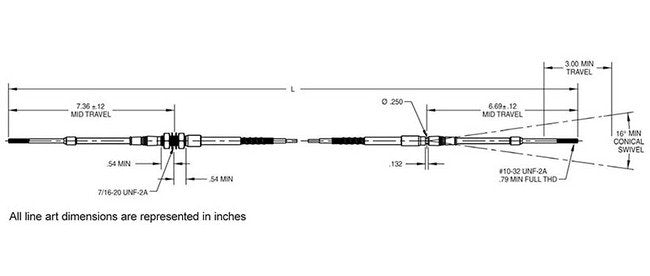

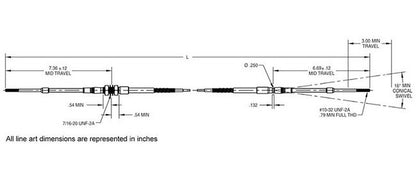

All line art dimensions are represented in inches
Specifications Seal Options
6
Specifications Wire Rope Dia
10-32 UNF End Rods - Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
