Blue Max High Performance Push-Pull Control Cable

Name: Blue Max High Performance Push-Pull Control Cable
Brand: Lexco Cable Manufacturing
SKU: PUS-96b3fe
Price: 49.99 USD
Availability: OutOfStock

SKU:PUS-96b3fe

Durable Blue Max Push-Pull Control Cable for marine and racing applications. Stainless steel fittings, high temperature resistance, precise control.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

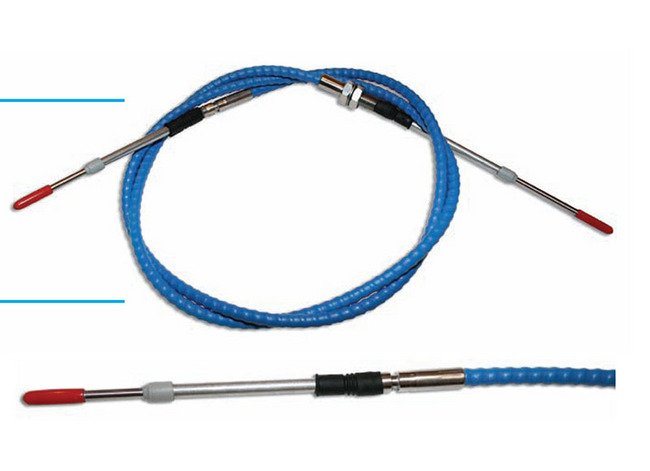

The Blue Max High Performance Push-Pull Control Cable is designed for precision and durability. Constructed with stainless steel exposed fittings and carbon steel end rods, this cable ensures reliable performance in challenging environments. With a temperature range of -65 to 350 Â°F, it excels in marine and racing applications, offering a smooth and responsive control experience. Featuring stainless steel conduit caps and a PTFE core, this cable meets rigorous industry standards for quality and performance.

Product Specifications

Applications Marine Applications

ShiftThrottleTrimSlim line grooved conduit capNot Intended For Use as Steering Cable

Applications Racing Applications

ShiftFuel Shut OffChute ReleaseThrottleNot Intended For Use as Steering Cable

Design Parameters Minimum Bend Radius

4 "

Design Parameters Operating Temperature

-65 to 350 ÂºF

Design Parameters Travel Minimum Length

3 "

Features 0

Travel: 3.00"Bulkhead type (threaded) conduit caps, stainless steelClamp type (grooved) conduit caps, stainless steel10-32 end rod threadsBB, BC, CC options are all availableHigh temperature

Material 0

1 x 19 Stainless Steel Wrapped InnermemberRHOS RatedStainless SteelLDPE Covered (Blue) ConduitBinder Wire Conduit Core PTFE

Specifications End Fitting Combinations Stainless End Opposite E

G - Grooved Swivel/G - Grooved Swivel

Specifications Note

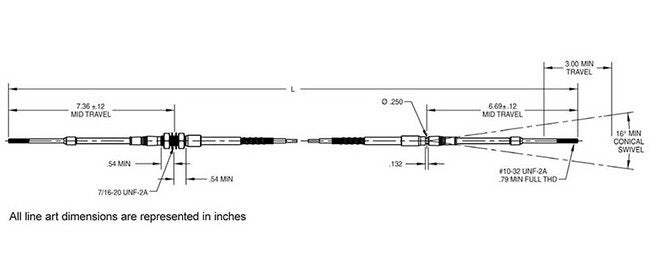

All line art dimensions are represented in inches

Specifications Seal Options

Specifications Wire Rope Dia

10-32 UNF End Rods - Very Light Duty

CAGE

0T9L4

NAICS

332510

PSC

4030

Blue Max High Performance Push-Pull Control Cable
