Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

SKU:PUS-aa2b90

Durable stainless steel Blue Max cable for marine and racing applications, high temp resistant, ideal for various controls.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

$39.99

Quantity: 1

Claim Your Seller Account

Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Blue Max High Performance Push-Pull Control Cable is expertly crafted with stainless steel exposed fittings at both ends, ensuring durability and reliability. With a wire rope diameter of 10-32 UNF End Rods, it offers very light-duty operation. Designed for marine and racing applications, this cable features a high-temperature operating range of -65 to 350 °F. The stainless steel construction, LDPE covered conduit, and PTFE core make it ideal for shift, throttle, trim, fuel shut off, and chute release functions. It complies with industry-specific high standards for performance and longevity.

Product Specifications

Applications Marine Applications
ShiftThrottleTrimSlim line grooved conduit capNot Intended For Use as Steering Cable
Applications Racing Applications
ShiftFuel Shut OffChute ReleaseThrottleNot Intended For Use as Steering Cable
Design Parameters Minimum Bend Radius
4 "
Design Parameters Operating Temperature
-65 to 350 ºF
Design Parameters Travel Minimum Length
3 "
Features 0
Travel: 3.00"Bulkhead type (threaded) conduit caps, stainless steelClamp type (grooved) conduit caps, stainless steel10-32 end rod threadsBB, BC, CC options are all availableHigh temperature
Material 0
1 x 19 Stainless Steel Wrapped InnermemberRHOS RatedStainless SteelLDPE Covered (Blue) ConduitBinder Wire Conduit Core PTFE
Specifications End Fitting Combinations Tt Tg Gt Gg
G - Grooved Swivel/G - Grooved Swivel
Specifications Note

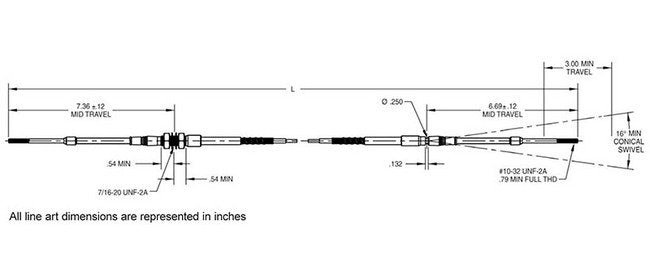

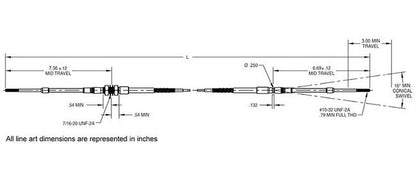

All line art dimensions are represented in inches
Specifications Seal Options
6
Specifications Wire Rope Dia
10-32 UNF End Rods - Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
