Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

SKU:PUS-6e3191

Durable High Performance Push-Pull Control Cable for marine and racing applications. Stainless steel fittings, carbon steel end rods with a wide operating temperature range.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

$49.99

Quantity: 1

Claim Your Seller Account

Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

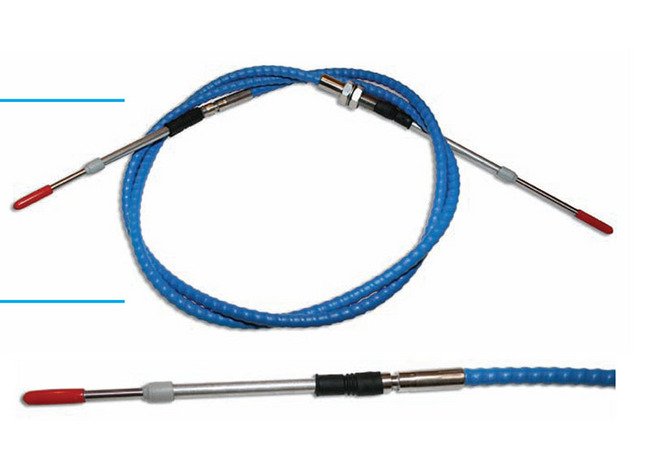

The Blue Max High Performance Push-Pull Control Cable is designed for precision and durability in demanding environments. Featuring stainless steel exposed fittings and carbon steel end rods, this cable ensures reliable performance. With an operating temperature range of -65 to 350 °F, it is suitable for marine and racing applications. The stainless steel wrapped inner member with LDPE covered conduit provides RHOS rated protection. Bulkhead and clamp type conduit caps along with BB, BC, CC end rod options offer versatility and high temperature resistance.

Product Specifications

Applications Marine Applications
ShiftThrottleTrimSlim line grooved conduit capNot Intended For Use as Steering Cable
Applications Racing Applications
ShiftFuel Shut OffChute ReleaseThrottleNot Intended For Use as Steering Cable
Design Parameters Minimum Bend Radius
4 "
Design Parameters Operating Temperature
-65 to 350 ºF
Design Parameters Travel Minimum Length
3 "
Features 0
Travel: 3.00"Bulkhead type (threaded) conduit caps, stainless steelClamp type (grooved) conduit caps, stainless steel10-32 end rod threadsBB, BC, CC options are all availableHigh temperature
Material 0
1 x 19 Stainless Steel Wrapped InnermemberRHOS RatedStainless SteelLDPE Covered (Blue) ConduitBinder Wire Conduit Core PTFE
Specifications End Fitting Combinations Stainless End Opposite E
G - Grooved Swivel/T - Threaded Swivel
Specifications Note

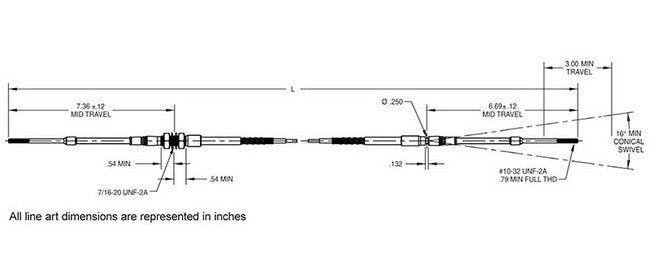

All line art dimensions are represented in inches
Specifications Seal Options
6
Specifications Wire Rope Dia
10-32 UNF End Rods - Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
